COMPONENT PACKAGES

TSOC Component Package

Date Published:
Last Modified:

Overview

`
NameThin Small-Outline C-Lead
SynonymsD6 (Maxim)
Variants
  • D6+1/D6-1 (Variant A)
  • D6N+1/D6N-1 (Variant B)
Similar Ton/a
MountingSMD
Pin Count6 (TSOC-6)
Pitch1.27mm (for all variants)
SolderabilityEasy to solder by hand.
Thermal Resistancen/a
Dimensions
  • 3.94x4.29x1.40mm, LA: 17.6mm2 (D6+1/D6-1)
  • 3.94x4.62x1.40mm, LA: 18.9mm2 (D6N+1/D6N-1)
Height1.80mm
3D ModelsTSOC-6
Common Uses
  • EEPROM
  • Timing IC
  • ESD protection diodes

Comments

As far as I can tell, this package only comes in the 6-pin version (TSOC-6), and is only used by Dallas/Maxim (since 2001, Dallas has been a subsidiary of Maxim). While Maxim Integrated lists four different variants (see the Title section of the recommended land patterns below), there seems to be no physical difference between the D6+1 and D6-1 variants, and no difference between the D6N+1 and D6N-1 variants. The difference between the variants with and without N in their name are the package width and the lead length (and hence two slightly different land patterns).

See https://www.maximintegrated.com/en/design/packaging/package-information.html for the official dimensions and land patterns from Maxim Integrated.

TSOC-6

The only difference between the D6+1, D6-1 and D6N-1 variants of the TSOC-6 component package is the recommended land pattern.

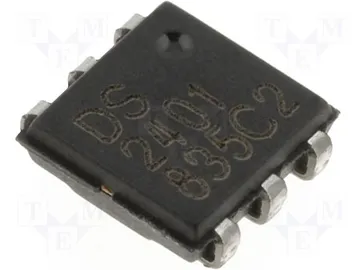

A photo of the TSOC-6 component package. Image from maximintegrated.com.

A photo of the TSOC-6 component package. Image from maximintegrated.com.

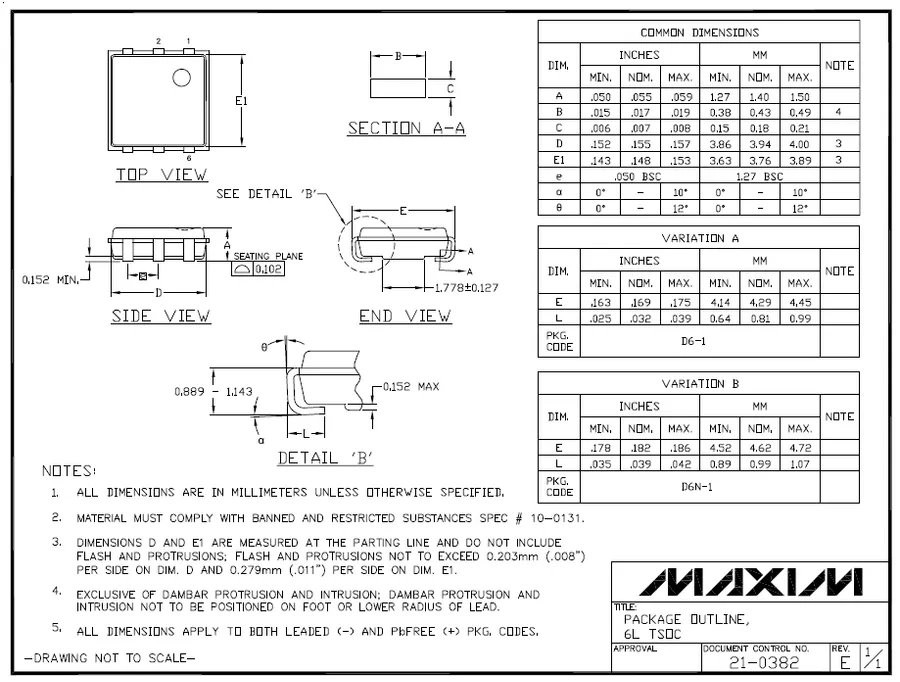

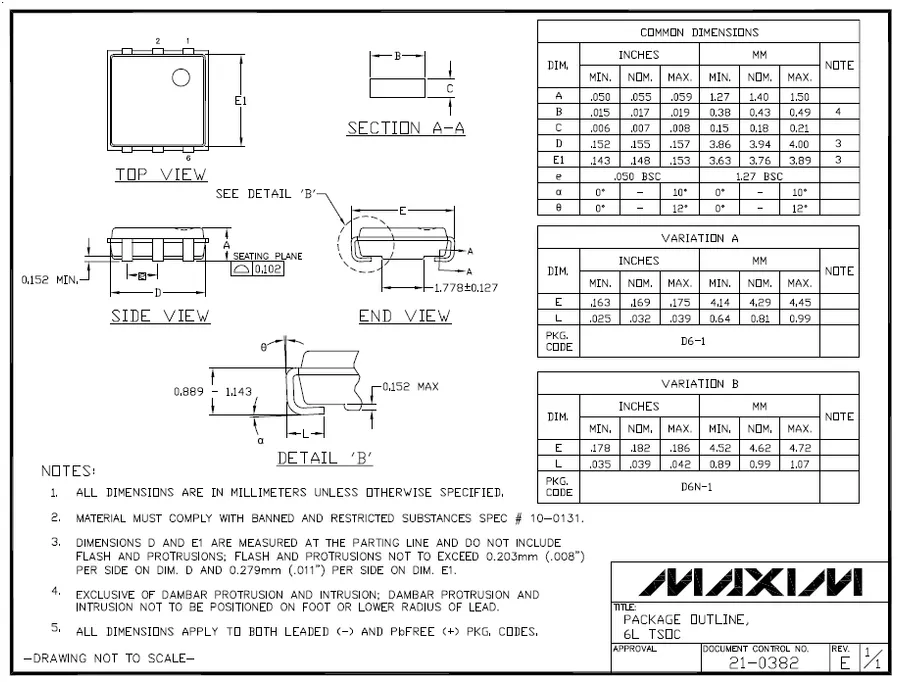

Dimensions

All Variants:

A photo of the TSOC-6 component package. Image from maximintegrated.com.

A photo of the TSOC-6 component package. Image from maximintegrated.com.

Recommended Land Pattern

D6+1/D6-1 Variants (Variant A):

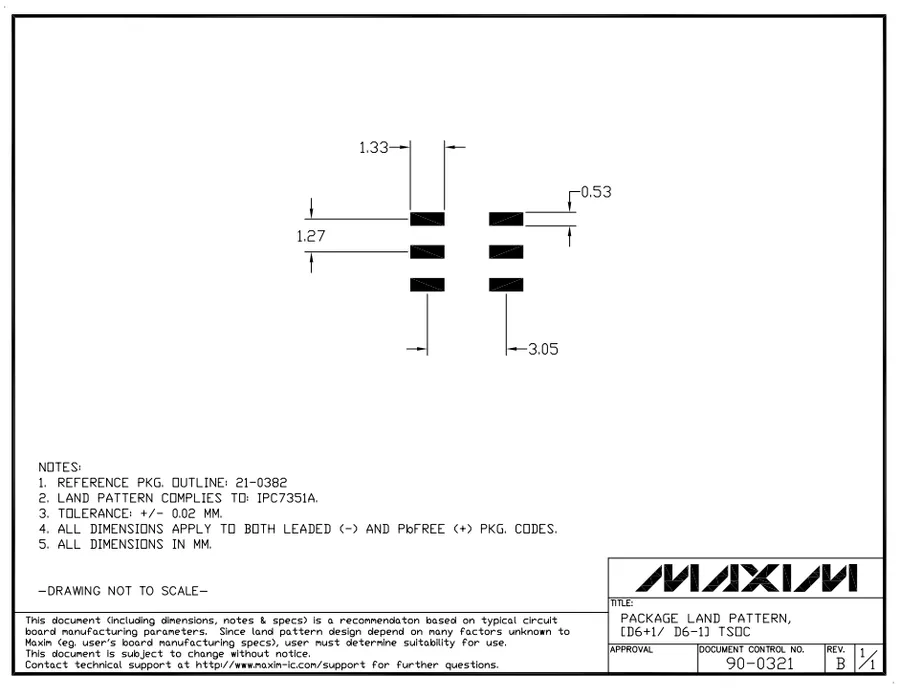

The recommended land pattern for the TSOC-6 D6+1/D6-1 component package. Image from maximintegrated.com.

The recommended land pattern for the TSOC-6 D6+1/D6-1 component package. Image from maximintegrated.com.

D6N+1/D6N-1 Variants (Variant B):

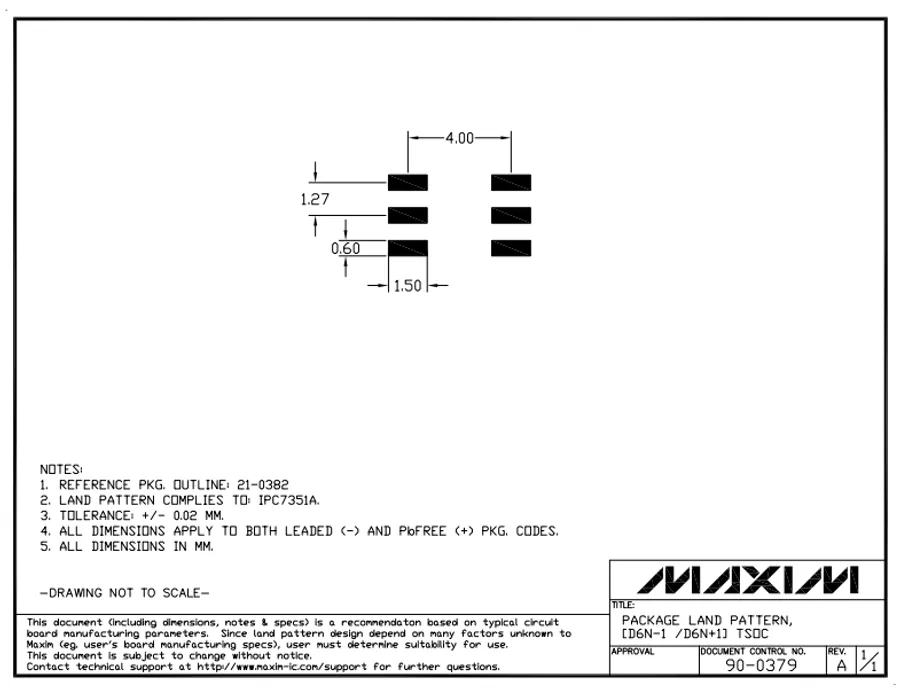

The recommended land pattern for the TSOC-6 D6N+1/D6N-1 component package. Image from maximintegrated.com.

The recommended land pattern for the TSOC-6 D6N+1/D6N-1 component package. Image from maximintegrated.com.
