SOT-665 Component Package

Article by:
Date Published:
Last Modified:

Overview

A 3D render of the SOT-665 component package. Image from http://www.digikey.com/.

A 3D render of the SOT-665 component package. Image from http://www.digikey.com/.

SOT-665 (Small-Outline Transistor 665) is a SMD component package with 5 leads. It is commonly used for TVS diodes manufacturer by NXP and STMicroelectronics.

Synonyms

  • SOT-665
  • SOT-665-5: Used by Mouser1. Presumably the 5 is added to indicate the number of leads.

Dimensions

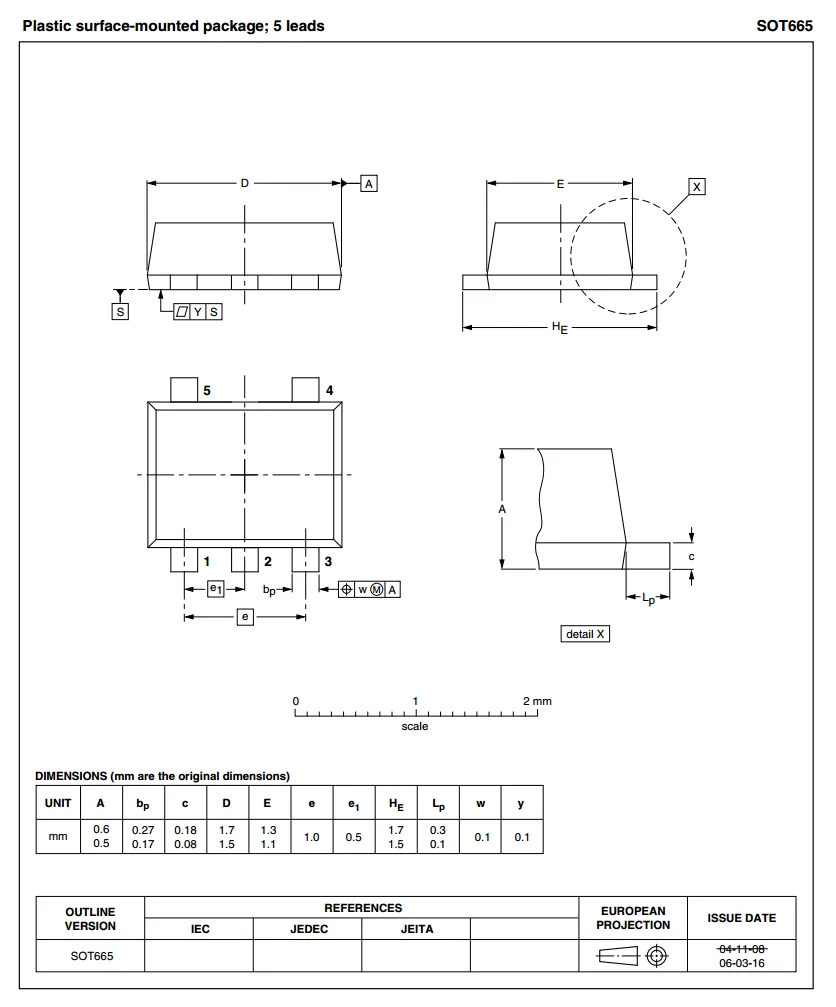

Below are the dimensions for the SOT-665 component package from NXP2:

The dimensions for the SOT-665 component package from NXP[^nxp-sot-665].

The dimensions for the SOT-665 component package from NXP2.

As per the above diagram, the SOT-665 body is 1.2mm wide and 1.6mm long. The total width including the leads is 1.6mm. The pitch is 0.5mm.

Footprint

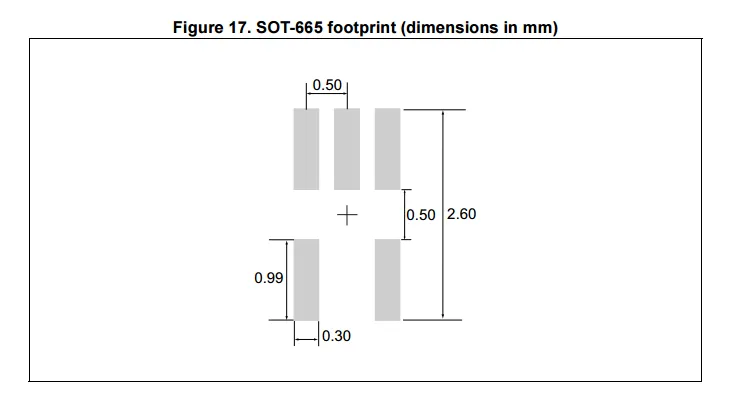

A recommended footprint (land pattern) for the SOT-665 component package is shown below:

A recommended footprint (land pattern) for the SOT-665 component package. Image from http://www.st.com/.

A recommended footprint (land pattern) for the SOT-665 component package. Image from http://www.st.com/.

The footprint has a land area of \(3.38mm^2\) (1.3x2.6mm), ignoring any clearance area given around the perimeter of the footprint (i.e. courtyard).

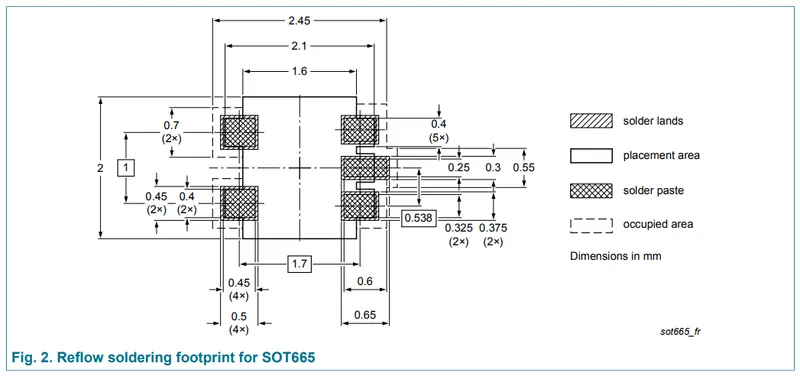

Here is another land pattern for the SOT-665, this time from NXP:

The recommended land pattern for the SOT-665 component package from NXP[^nxp-sot-665].

The recommended land pattern for the SOT-665 component package from NXP2.

Similar To

  • SOT-663
  • SOT-666IP
