COMPONENT PACKAGES

SNAPHAT Component Package

Date Published:	April 5, 2015
Last Modified:	April 5, 2015

Overview

Name	SNAPHAT
Synonyms	n/a
Variants	n/a
Similar To	n/a
Mounting	TH
Pin Count	28, 44
Pitch	n/a
Solderability	n/a
Thermal Resistance	n/a
Land Area	n/a
Height	n/a
3D Models	n/a
Common Uses	Back-up powered time keeping on PCBs

Comments

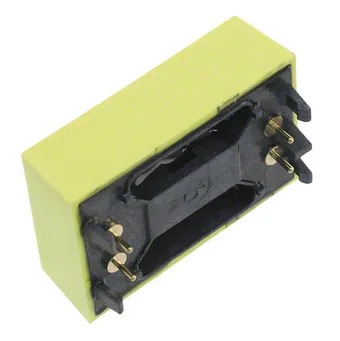

Package registered by ST Microelectronics. Used to hold small rechargeable batteries and crystals for timekeeping on circuit boards once the power is removed. The top part containing the batteries and crystal can ‘snap’ into package after reflow, to avoid damaging the battery.

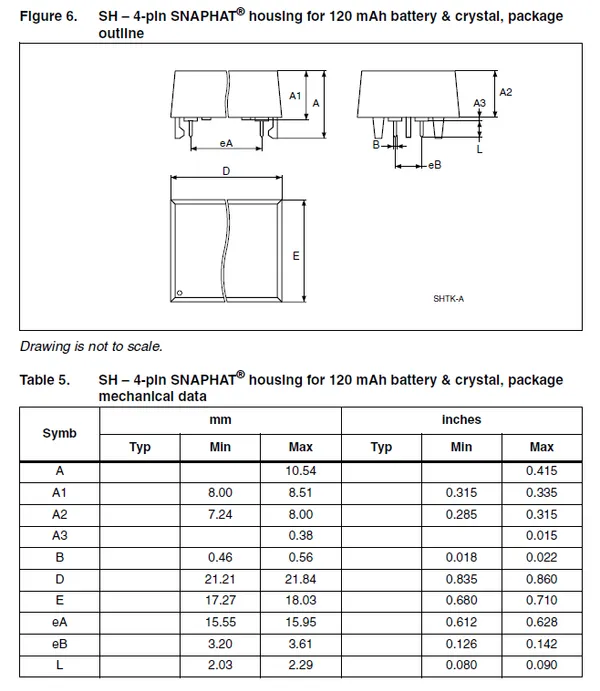

Dimensions

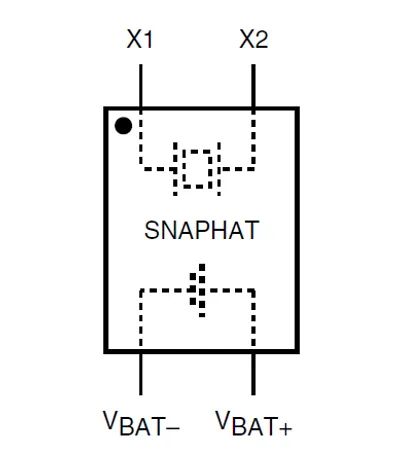

Typical Pin Connections

The schematic for the SnapHat component package.
