SOD-110 Component Package

Article by:
Date Published:
Last Modified:

Overview

SOD-110 (Small-outline Diode 110) is a small 2-lead SMD component package used for diodes.

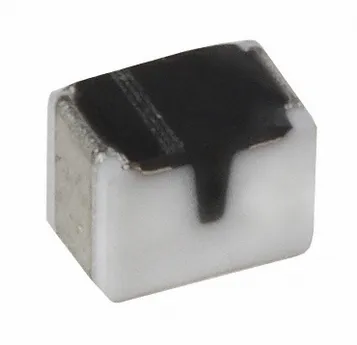

A photo of the SOD-110 component package.

A photo of the SOD-110 component package.

Synonyms

  • SOD2: NXP’s “package type descriptive code”1.

Dimensions

SOD-110 is 2.0mm long, 1.25mm wide and 1.5mm high1.

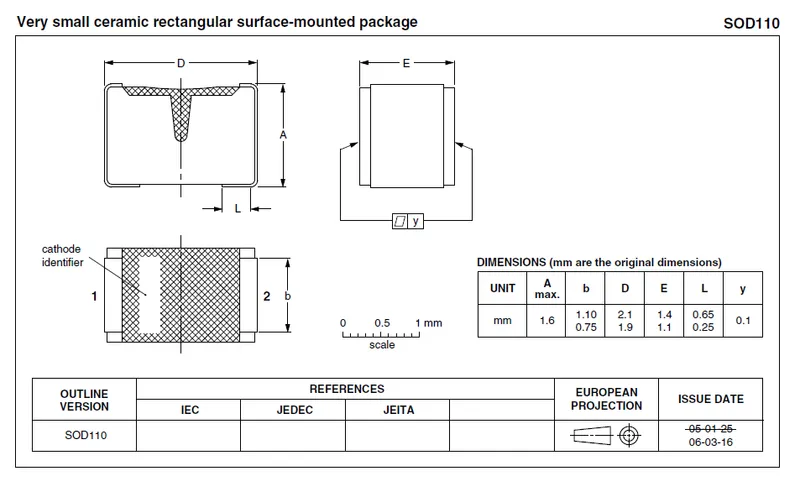

The dimensions of the SOD-110 component package. Image from NXP SOD-110 Package Outline (http://www.nxp.com/documents/outline_drawing/sod110_po.pdf)

The dimensions of the SOD-110 component package. Image from NXP SOD-110 Package Outline (http://www.nxp.com/documents/outline_drawing/sod110_po.pdf)

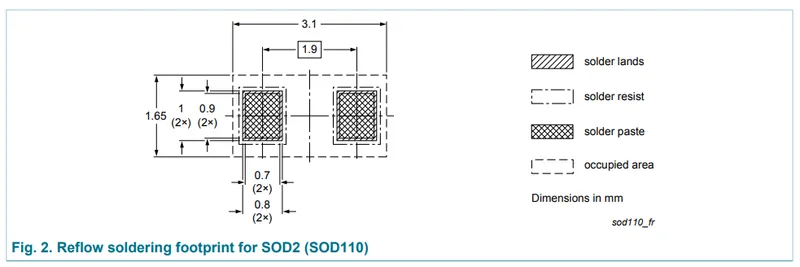

Below is the recommended land pattern for the SOD-110 from NXP (for reflow soldering):

The recommended land pattern for the SOD-110 component package[^nxp-sod110].

The recommended land pattern for the SOD-110 component package1.
