Micro-MELF Component Package

Article by:
Date Published:
Last Modified:

Overview

MicroMELF (Micro Metal Electrode Leadless Face) is a small 2-lead SMD component package. It is the smallest package in the family also containing t he MELF and MiniMELF (SOD-80, DO-213AA) packages.

Some versions have squared bits in the middle, making it easier to place one on a PCB and solder without it rolling around. 0Ω resistors in this package usually have a single centered black line.

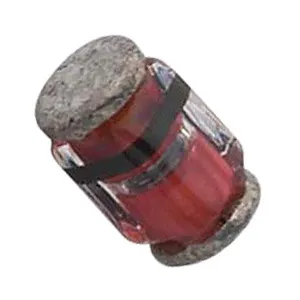

A photo of the Micro-MELF component package.

A photo of the Micro-MELF component package.

The Vishay MicroMELF measures 2.2mm long and 1.1mm in diameter1. The dimensions and recommended land pattern are shown in the below diagram:

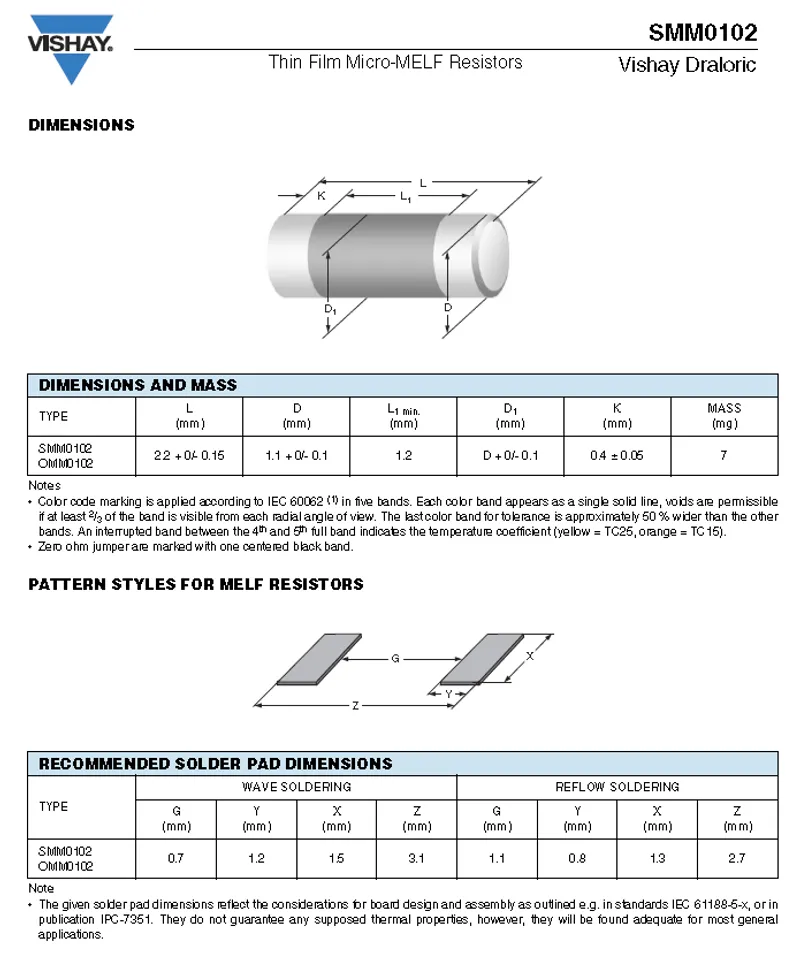

The dimensions and recommended land pattern for the Vishay MicroMELF component package[^vishay-smm0102-thin-film-micromelf-resistors].

The dimensions and recommended land pattern for the Vishay MicroMELF component package1.

Common Uses

  • Resistors
  • Diodes

Similar To

References

  1. Vishay (2015, Dec 4). SMM0102 - Thin Film Micro-MELF Resistors [datasheet]. Retrieved 2024-04-16, from https://www.vishay.com/docs/20003/smm0102.pdf. ↩︎ ↩︎
