SOT-886 Component Package

Date Published:	April 6, 2015
Last Modified:	April 6, 2015

Overview

Name	SOT-886 (Small Outline Transistor 886)
Synonyms	XSON6 (NXP RFID) 6-XFDFN (DigiKey)
Variants	n/a
Similar To	SOIC
Mounting	SMD
Pin Count	6
Pitch	n/a
Solderability	Very hard to solder by hand.
Thermal Resistance	n/a
Land Area	1.45mm² (1.45x1mm)
Height	0.5mm
3D Models	n/a
Common Uses	RFID tag chips (e.g. the some of the NXP UCODE G2il chips) Logic gates Buffers/line drivers Linear voltage regulators

Comments

NXP seems to be the only manufacturer who uses this package.

3D Renders

A 3D render of the SOT-886 component package.

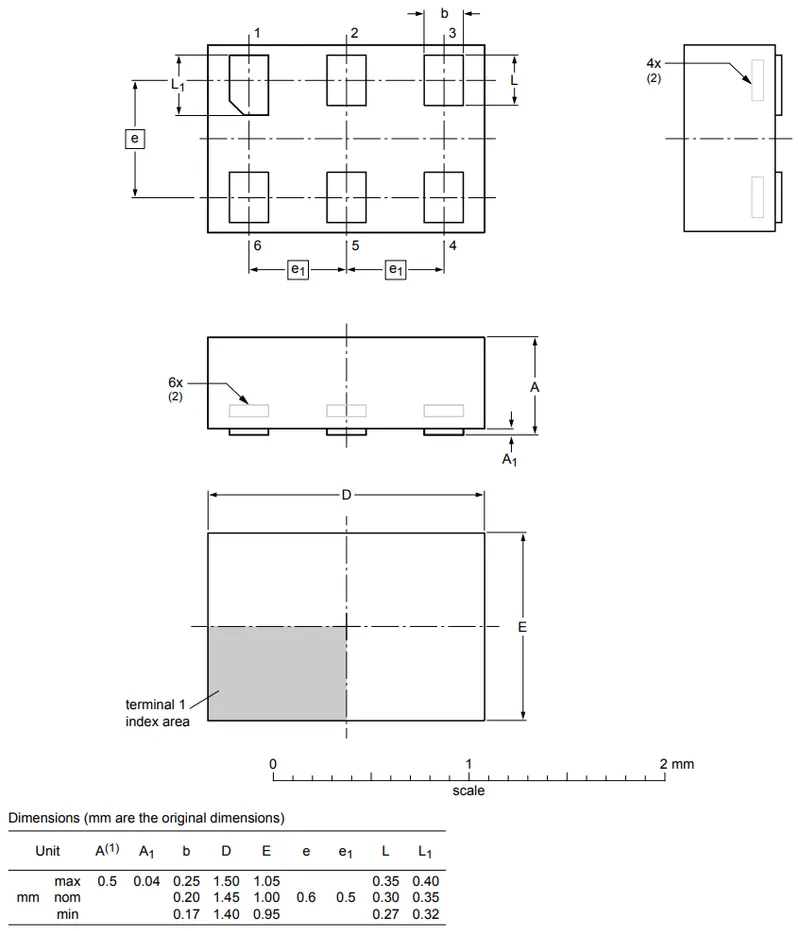

Other Images

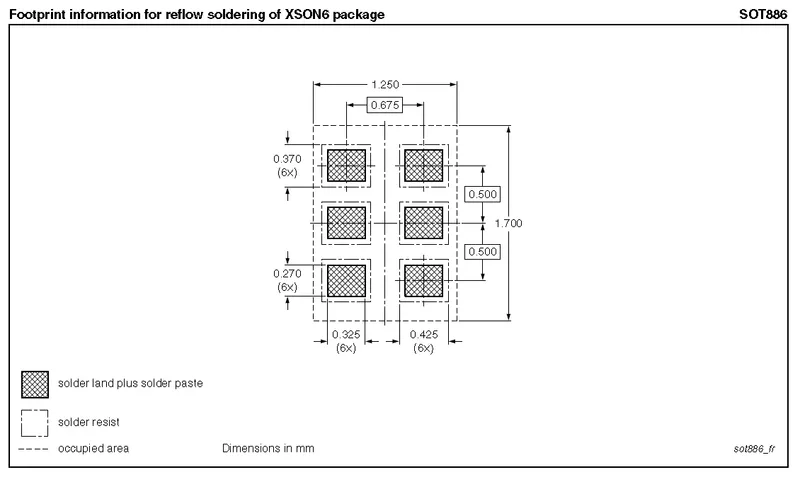

The PCB land pattern for the SOT-886 component package. Image from http://www.nxp.com/documents/reflow_soldering/sot886_fr.pdf.
