EEP Component Package

Article by:
Date Published:
Last Modified:

Overview

Name EEP
Synonyms
  • R-PDSS-T5
  • R-PDSS-T6
Variants n/a
Similar To n/a
Mounting TH
Pin Count 4-6
Pitch Multiples of 2.54mm (100mill)
Solderability Easy to solder by hand.
Thermal Resistance n/a (it's a module)
Land Area n/a
Height n/a
3D Models n/a
Common Uses DC/DC converters

Comments

Used by Texas Instruments for some of their higher power DC/DC converters. Has a varying number of pins depending on functionality (but this does not change the footprint).

Photos

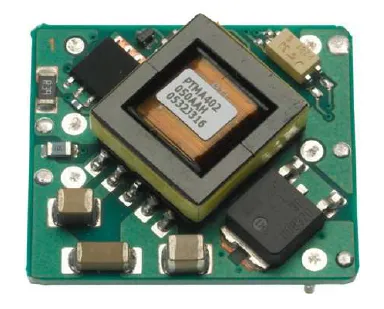

Photo of a DC/DC converter by Texas Instruments in an EEP package.

Photo of a DC/DC converter by Texas Instruments in an EEP package.

Dimensions

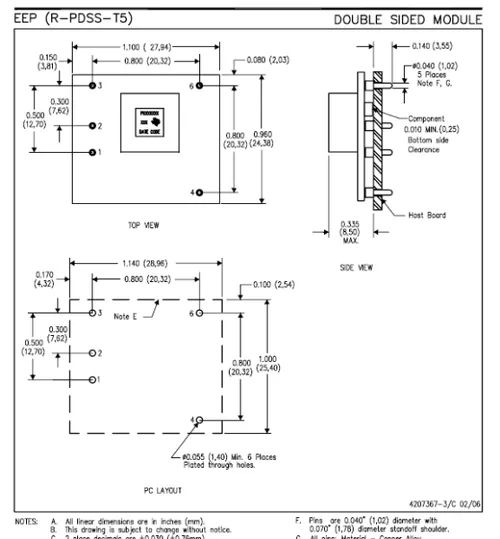

Dimensions of the EEP package.

Dimensions of the EEP package.


Authors

Geoffrey Hunter

Dude making stuff.
