SOD-923 COMPONENT PACKAGE
SOD-923 Component Package
Date Published: | |
Last Modified: |
Contents
1. Overview
Name | SOD-923 (Small Outline Diode 923) |
Synonyms | |
Similar To | |
Variants |
|
Mounting | SMD |
Pin Count | 2 |
Pitch | 0.875mm[1] |
Solderability | Reflow is most suitable. Possible to hand solder/reflow as long as experienced. |
Thermal Resistance | |
Package LxWxH | |
Typical PCB Land Area | 0.72mm² (1.2x0.6mm)[1] |
3D Models | |
Common Uses |
|

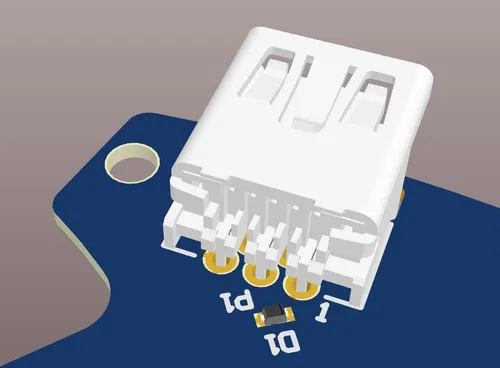

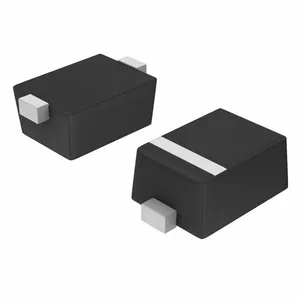

2. SOD-923 (Gull-wing Lead Variant)
The SOD-923 is similar to the SOD-923F, except the SOD-923 has pins protruding from the sides of the package and is not considered a "chip" package. The SOD-923 and SOD-923F have the same outer dimensions (when you include the pins in the SOD-923).

3. SOD-923F (Flat Lead Variant)
The SOD-923F is similar to the SOD-923, except that the SOD-923F does not have pins protruding past the end of the package and instead is a "chip" style package with the pins on the bottom face of the package. It is identical to the 0402 package commonly used for resistors and capacitor, however the SOD-923F`
designation is typically used for diodes whilst 0402
is used for chip resistors and capacitors.

References
[1] Toshiba Semiconductor. SOD-923. Retrieved 2021-12-14, from https://toshiba.semicon-storage.com/ap-en/semiconductor/design-development/package/detail.SOD-923.html.
[2] Central Semiconductor. Package Details: SOD-923 Case. Retrieved 2021-12-14, from https://www.centralsemi.com/PDFs/case/SOD-923PD.PDF.
[3] DigiKey. Comchip Technology CPDQR5V0U-HF (product page). Retrieved 2021-12-14, from https://www.digikey.in/en/products/detail/comchip-technology/CPDQR5V0U-HF/3308667.
[4] Comchip. Low VF SMD Schottky Barrier Diode: CDBQC0130L-HF (datasheet). Retrieved 2021-12-14, from https://www.comchiptech.com/admin/files/product/CDBQC0130L-HF%20RevB681116.pdf.
