SMA (DO-214AC) COMPONENT PACKAGE

SMA (DO-214AC) Component Package

Article by:
Date Published:
Last Modified:

Contents

Overview

NameDiode Outline 214AC
SynonymsSMA
Variantsn/a
Similar To
MountingSMD
Pin Count2
Pitch6.8mm
SolderabilityEasy to solder by hand.
Thermal Resistancen/a
Land Arean/a
Height2.62mm (when mounted)
3D Models

DO-214AC

Common UsesDiodes

Comments

Not to be confused with SMD (surface-mount device, the common name for any surface-mount component), or the RF connector type that shares the same name.

3D Render

A 3D render of the SMA (DO-214AC) component package.

A 3D render of the SMA (DO-214AC) component package.

Dimensions

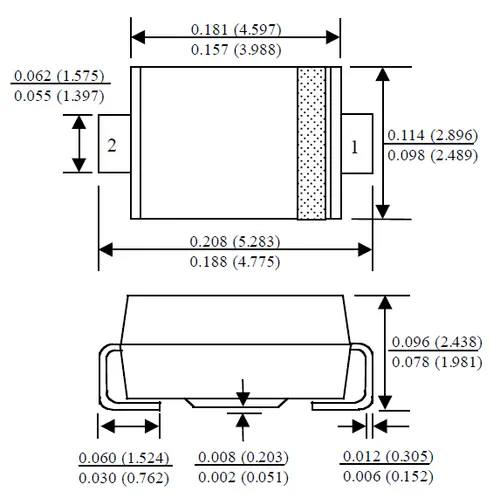

The dimensions for the DO-214AC component package.

The dimensions for the DO-214AC component package.

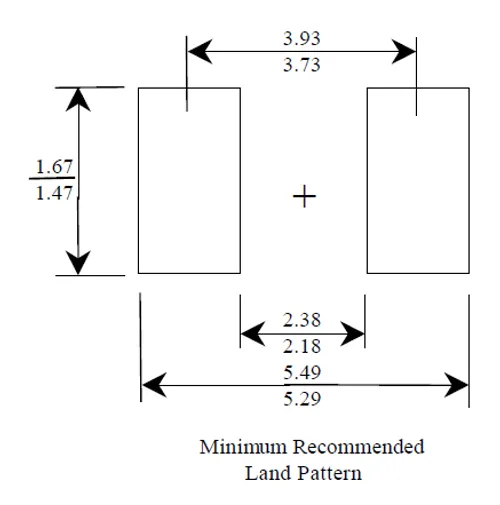

The recommended PCB land pattern for the DO-214AC component package.

The recommended PCB land pattern for the DO-214AC component package.
