ZYNQ

Zynq

Article by:
Date Published:
Last Modified:

Child Pages

  • Building Linux For The Zynq ZC702 Eval Kit Using Yocto
  • Installing xsdb And JTAG Drivers
  • Overview

    The Zynq is a family of Xilinx FPGAs which incorporate both programmable logic and one or more dedicated ARM Cortex-A9 processors (because of the inclusion of the processor, it can be referred to as a SoC instead of an FPGA).

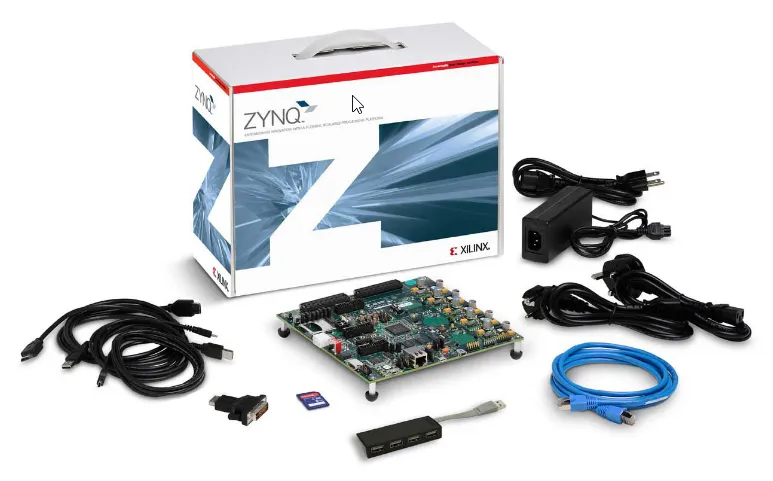

    The Xilinx ZC720 Evaluation Kit featuring the Zynq-7000 SoC.

    The Xilinx ZC720 Evaluation Kit featuring the Zynq-7000 SoC.

    Acronyms

    PL - Programmable Logic. This refers to the programmable FPGA logic (a.k.a. fabric) inside the Zynq-7000.

    PS - Processing System. This refers to the Cortex-A9 subsystem inside the Zynq-7000.

    Variants

    There are two main variants of the Zynq, the Zynq-7000S, a cheaper cost-optimised FPGA (with one Cortex-A9 processor), and the Zynq-7000, the more powerful and expensive FPGA (with more logic cores and dual Cortex-A9 processors).

    Microblaze

    Microblaze, a soft-core CPU architecture provided by Xilinx, can be run on the programmable logic inside the Zynq, in addition to the dedicated Cortex-A9 processor.

    The SDK

    The Xilinx Software Development Kit (SDK) can be used to design and debug Zynq FPGAs.

    Operating Systems

    You can run a number of different operating systems on the Cortex-A9 processor inside the Zynq FPGA. These include:

    meta-xilinx

    meta-xilinx is the Yocto layer provided by Xilinx to build Yocto-based images for the Zynq architecture.

    The device trees are located at:

    1

    meta-xilinx/recipes-bsp/device-tree/


    In particular, zynq7-base.dtsi located at meta-xilinx/recipes-bsp/device-tree/files/common/ could be of particular interest because it defines hardware such as the ethernet, UART, I2C, CAN, USB, ADC e.t.c.
