SOD-323 COMPONENT PACKAGE
SOD-323 Component Package
Date Published: | |
Last Modified: |
Overview
SOD-323 (Small-outline Diode 323) is a family of 2-lead SMD component packages, commonly used for diodes.
The are four variants, with the key differences being:
- SOD-323: Bent leads.
- SOD-323F: Flat leads (better heatsinking).
- SOD-323FL: Flat leads, with one longer than the other (even better heatsinking).
- SOD-323HE:
Solderability: Reflow is recommended. Easy to solder by hand.
Pitch: 2.2mm1
Similar To:
SOD-323 (Standard Variant)
SOD-323
is a 2 lead, SMD component package commonly used for diodes. Without any other suffixes, SOD-323
typically refers to bent lead variant, also know as SC-76
(JEITA)1.
Synonyms:
SC-76
(JEITA)
|=== | Property | NXP (nominal)1 | Body Length | 1.7mm | Body Width | 1.25mm | Body Height | 0.95mm |===
![Dimensions for the `SOD-323` component package[^bib-nxp-sod323-ds].](https://blog.mbedded.ninja/pcb-design/component-packages/sod-323-component-package/sod-323-package-dimensions-nxp.png)

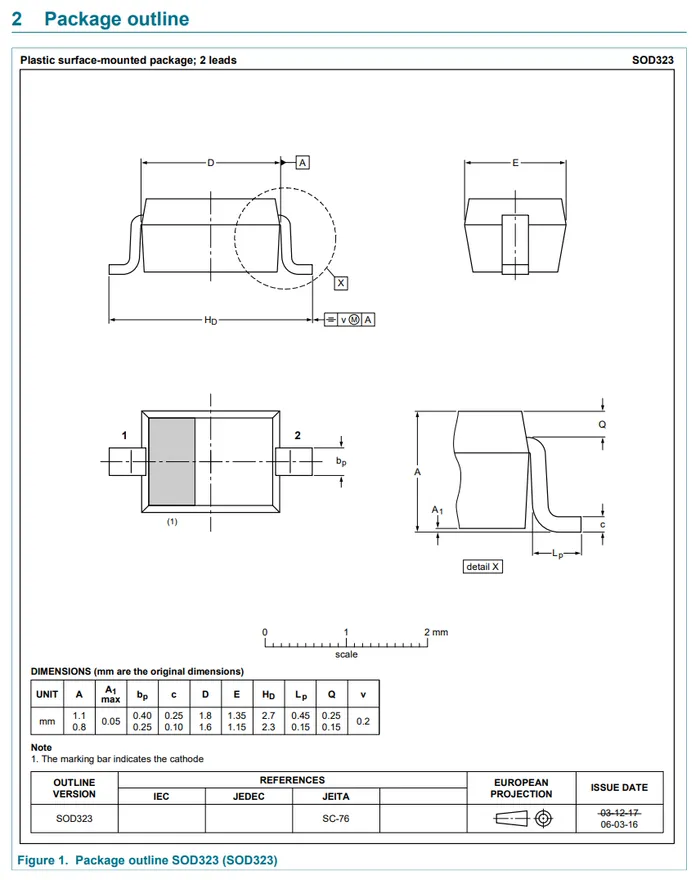

Dimensions for the SOD-323
component package1.
Thermal Resistance:
\(R_{\theta(ja)} = 450K/W\)
(FR4 PCB, single-sided copper, standard footprint)2\(R_{\theta(ja)} = 210K/W\)
(FR4 PCB, single-sided copper, standard footprint but with\(1cm^2\)
mounting pad for cathode)2\(R_{\theta(jc)} = 90K/W\)
(from junction to solder point)2
Typical PCB Land Area: \(13.75mm^2\)
(5x2.75mm)1
SOD-323F (Flat Lead Variant)
The SOD-323F
is a variant which has flat leads instead of the bent leads in the standard SOD-323
. It has the same body dimensions as the standard SOD-323
.
Synonyms
WARNING: Rohm uses the name SOD-323FL
to refer to the same package as many other manufacturers call SOD-323F
4. Central Semiconductor also uses the package name SOD-323FL
, but this refers to a different variant with different sized leads (see below).
![3D render of the `SOD-323F` component package[^bib-nexperia-sod-323f].](https://blog.mbedded.ninja/pcb-design/component-packages/sod-323-component-package/sod-323f-3d-render-nexperia.png)

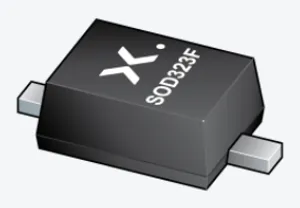

3D render of the SOD-323F
component package5.
![Package dimensions of the `SOD-323F` component package[^bib-diodes-inc-sod-323f].](https://blog.mbedded.ninja/pcb-design/component-packages/sod-323-component-package/sod-323f-package-dimensions-diodes-inc.png)

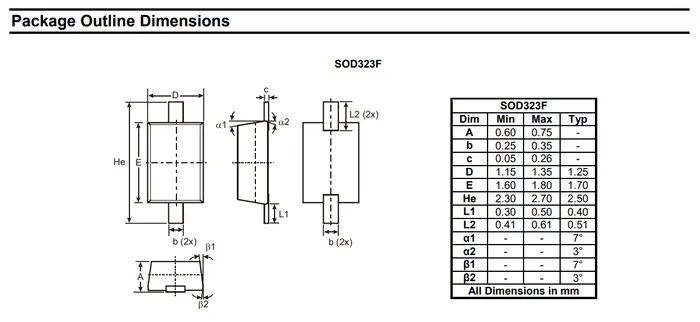

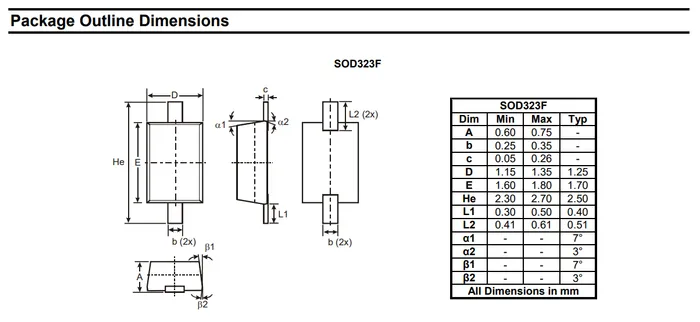

Package dimensions of the SOD-323F
component package6.
SOD-323FL (Central Semiconductor Variant)
Central Semiconductors version of the SOD-323FL
(the FL
is presumably an acronym for Flat Leads) is another variant of the SOD-323
with flat leads, except one of the leads is much longer than the other7. This improves the heatsinking of the package even more than that of the SOD-323F
variant.
![Package dimensions of the Central Semiconductor `SOD-323FL` component package[^bib-central-semi-sod-323fl].](https://blog.mbedded.ninja/pcb-design/component-packages/sod-323-component-package/sod-323fl-component-package-dimensions-central-semiconductor.png)

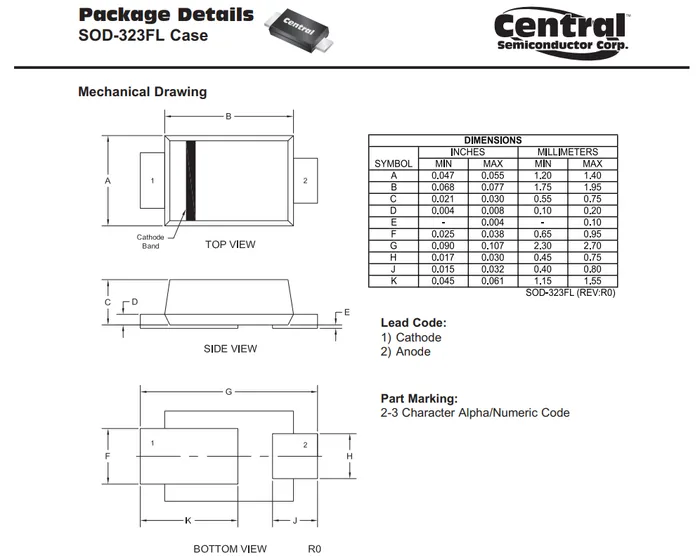

Package dimensions of the Central Semiconductor SOD-323FL
component package7.
![Recommended land pattern for the Central Semiconductor `SOD-323FL` component package[^bib-central-semi-sod-323fl].](https://blog.mbedded.ninja/pcb-design/component-packages/sod-323-component-package/sod-323fl-land-pattern-central-semiconductor.png)

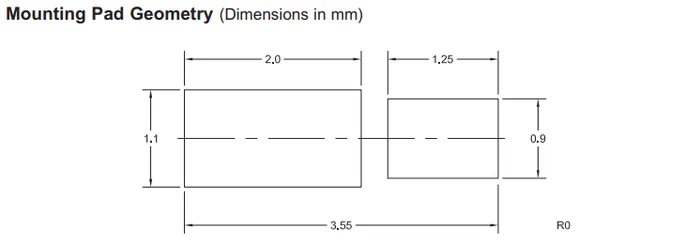

Recommended land pattern for the Central Semiconductor SOD-323FL
component package7.
SOD-323HE
Synonyms:
![3D model of the SOD-323HE component package[^bib-rohm-rb558vam150-ds].](https://blog.mbedded.ninja/pcb-design/component-packages/sod-323-component-package/sod-323he-3d-model-rohm.png)

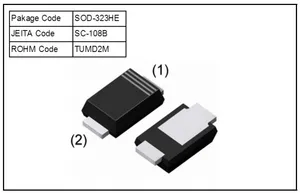

3D model of the SOD-323HE component package8.
![Package dimensions of the SOD-323HE component package[^bib-rohm-rb558vam150-ds].](https://blog.mbedded.ninja/pcb-design/component-packages/sod-323-component-package/sod-323he-package-dimensions-rohm.png)

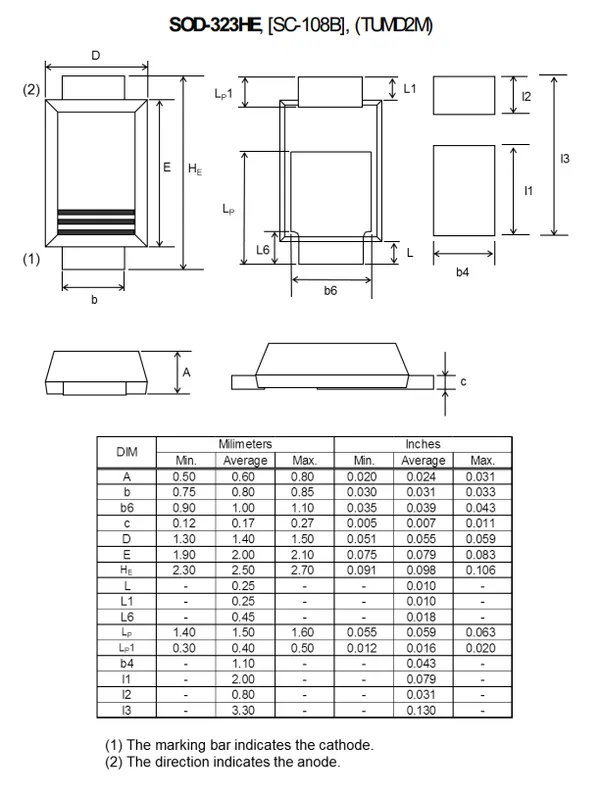

Package dimensions of the SOD-323HE component package8.
