SOT-1193 Component Package

Article by:
Date Published:
Last Modified:

Overview

Name SOT-1193 (Small Outline Transistor 1193)
Synonyms n/a
Variants
  • SOT-1193-1 (XQFN8)
  • SOT-1193-2 (XQFN8)
Similar To SOT-902
Mounting SMD
Pin Count ?
Pitch n/a
Solderability Hard to solder because it is just so small!
Thermal Resistance n/a
Land Area 2.56mm² (1.60x1.60mm)
Height n/a
3D Models n/a
Common Uses NXP RFID chips

Comments

NXP seems to be the only manufacturer who uses this package.

3D Renders

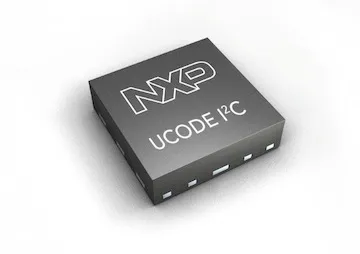

A 3D render of the SOT-1193 component package.

A 3D render of the SOT-1193 component package.

Dimensions

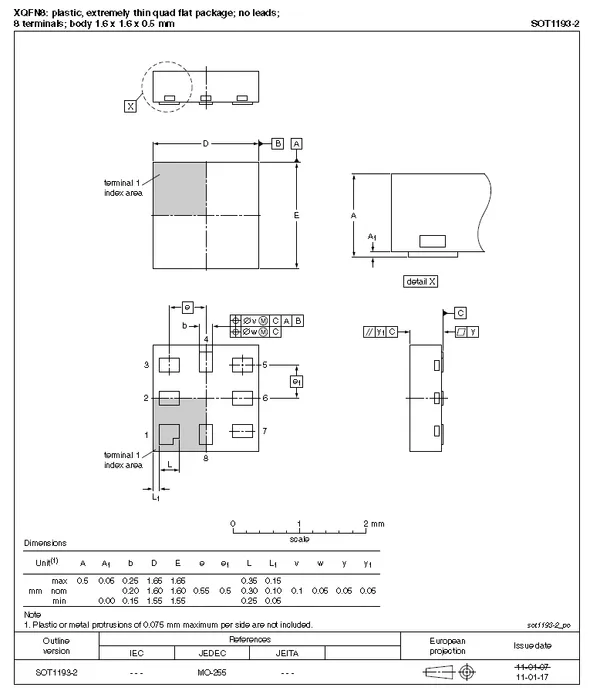

The dimensions for the SOT-1193-2 component package. Image from http://www.nxp.com/documents/outline_drawing/sot1193-2_po.pdf.

The dimensions for the SOT-1193-2 component package. Image from http://www.nxp.com/documents/outline_drawing/sot1193-2_po.pdf.
