Overview
The SOT-23F
component package is a 3-pin SMD component package that is very similar to the SOT-23 package, except the leads are flat rather than gull-wing (presumably that’s what the F
stands for). A PCB footprint for the SOT-23 can usually be interchangeably used with a SOT-23F as the leads have the same pitch and spacing.
![A 3D render of the SOT-23F component package[^bib-rs-toshiba-hall-effect-sensor-tcs40dprlf].](https://blog.mbedded.ninja/pcb-design/component-packages/sot-23f-component-package/sot-23f-3d-render-toshiba-rs.png)
A 3D render of the SOT-23F component package1.
The SOT-23F
package is used for the same components the SOT-23
package is used for – namely transistors, voltage references
Synonyms
- 2-3Z1S (Toshiba2)
Package Outline and Dimensions
![The package outline and dimensions of the SOT-23F package from Diodes Inc[^bib-diodes-inc-sot-23f-package-info].](https://blog.mbedded.ninja/pcb-design/component-packages/sot-23f-component-package/sot-23f-package-outline-and-dimensions-diodes-inc.png)

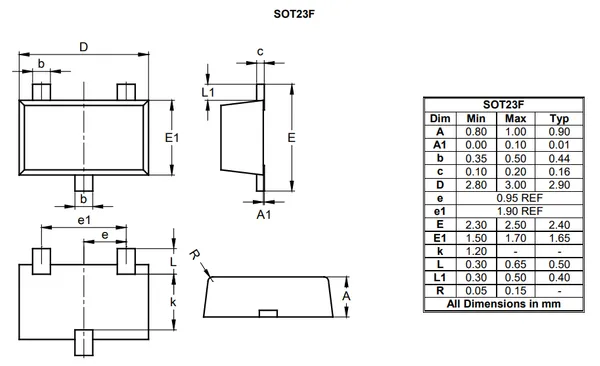

The package outline and dimensions of the SOT-23F package from Diodes Inc3.
Recommended Footprint
![The recommended PCB footprint for the SOT-23F package by Diodes Inc[^bib-diodes-inc-sot-23f-package-info].](https://blog.mbedded.ninja/pcb-design/component-packages/sot-23f-component-package/sot-23f-suggested-footprint-diodes-inc.png)
The recommended PCB footprint for the SOT-23F package by Diodes Inc3.
References
RS Components. TCS40DPR,LF(T - Toshiba Surface Mount Hall Effect Sensor, SOT-23F, 3-Pin (product page). Retrieved 2022-12-07, from https://my.rs-online.com/web/p/motion-sensor-ics/2363597. ↩︎
Toshiba. Package & Packing Information - Product detail - SOT-23F. Retrieved 2022-12-07, from https://toshiba.semicon-storage.com/ap-en/semiconductor/design-development/package/detail.SOT-23F.html. ↩︎
Diodes Incorporated. SOT-23F - Package Information. Retrieved 2022-12-07, from https://www.diodes.com/assets/Package-Files/SOT23F.pdf. ↩︎ ↩︎
