Crystal Packages

Article by:
Date Published:
Last Modified:
WARNING
This page is in notes format, and may not be of the same quality as other pages on this site.

Unfortunately, most surface-mount crystals do not come in named packages. A notable exception is the HC-49US package. This page contains info on the unnamed SMD crystal packages, which are usually identified by their widthlength. There are a variety of popular widthlength combinations used.

SMD Crystal Packages

Table of common SMD 2 pad crystal package dimensions:

Dimensions (width x length)
1.20x1.00mm
1.60x1.00mm
2.00x1.20mm
2.05x1.20mm
3.20x1.50mm
4.10x1.50mm

1.5x0.8mm

  • Dimensions: 1.5x0.8mm
  • Num. leads: 4
  • Connection type: BGA

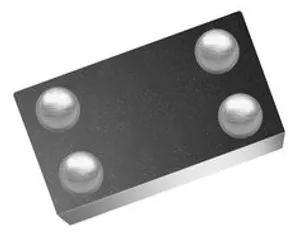

3D render of the SiTIME SIT1532AI-J4-DCC-32.768E in the 1.5x0.8mm CSP BGA package[^element14-sit1532ai-j4-dcc-32.768e].

3D render of the SiTIME SIT1532AI-J4-DCC-32.768E in the 1.5x0.8mm CSP BGA package1.

3.2x2.5mm (4-Lead)

  • Dimensions: 3.2x2.5mm
  • Num. leads: 4
  • Connection type: Pads

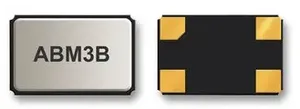

3D render of the Abracon ABM3B-8.000MHZ-10-1-U-T in the 3.2x2.5mm SMD crystal package[^element14-abm3b-8.000mhz-10-1-u-t].

3D render of the Abracon ABM3B-8.000MHZ-10-1-U-T in the 3.2x2.5mm SMD crystal package2.

A very common package size for a 4-lead SMD crystal. There is also a 6-lead crystal package with the same length and width of 3.2x2.5mm.

3.2x2.5mm (6-Lead)

  • Dimensions: 3.2x2.5mm
  • Num. leads: 6
  • Connection type: Pads

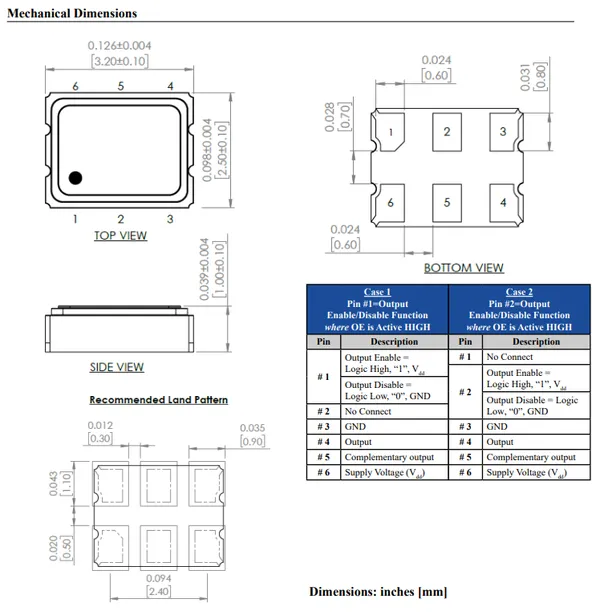

Package dimensions of the Abracon AX3DBF1-125.0000T SMD crystal, in a 3.2x2.5x1.0mm form factor. Image retrieved 2021-09-07, from https://nz.mouser.com/datasheet/2/3/AX3-1578477.pdf.

Package dimensions of the Abracon AX3DBF1-125.0000T SMD crystal, in a 3.2x2.5x1.0mm form factor. Image retrieved 2021-09-07, from https://nz.mouser.com/datasheet/2/3/AX3-1578477.pdf.

7.0x5.0mm (2-Lead)

  • Dimensions: 7.0x5.0mm
  • Num. leads: 2
  • Connection type: Pads

This is a common larger SMD package for crystals. There is also a 4-Lead package with the same outer dimensions.

7.0x5.0mm (4-Lead)

  • Dimensions: 7.0x5.0mm
  • Num. leads: 4
  • Connection type: Pads

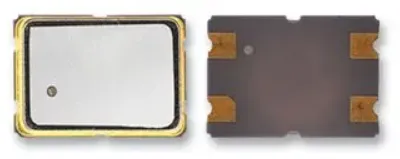

Photo of the EUROQUARTZ 10.000MHZ MQ/30/30/40/12PF crystal in a 7x5mm SMD package[^element14-10.000mhz-mq-30-30-40-12pf].

Photo of the EUROQUARTZ 10.000MHZ MQ/30/30/40/12PF crystal in a 7x5mm SMD package3.

This is a common larger SMD package for crystals. There is also a 2-Lead package with the same outer dimensions.

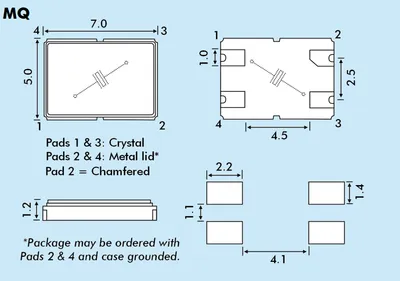

Package dimensions of the EUROQUARTZ 10.000MHZ MQ/30/30/40/12PF crystal in a 7x5mm SMD package[^element14-10.000mhz-mq-30-30-40-12pf].

Package dimensions of the EUROQUARTZ 10.000MHZ MQ/30/30/40/12PF crystal in a 7x5mm SMD package3.

Through-Hole Crystal Packages

Radial 6.2x2.1mm

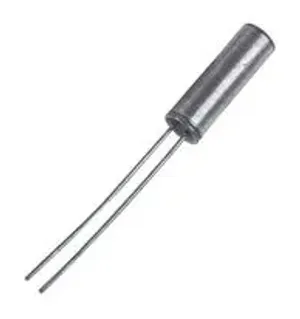

Photo of a Raltron R26-32.768-6 32.678kHz crystal in a 6.2x2.1mm radial package. Image retrieved 2021-09-11, from https://nz.element14.com/raltron/r26-32-768-6/crystal-32-768khz-6pf-6-2-x-2/dp/2982324.

Photo of a Raltron R26-32.768-6 32.678kHz crystal in a 6.2x2.1mm radial package. Image retrieved 2021-09-11, from https://nz.element14.com/raltron/r26-32-768-6/crystal-32-768khz-6pf-6-2-x-2/dp/2982324.
