SOT-1040-1 Component Package

Article by:
Date Published:
Last Modified:

Contents

Overview

NameSOT-1040-1 (Small Outline Transistor 1040-1)
SynonymsPlastic Flip Chip Strap Package
Variantsn/a
Similar Ton/a
MountingSMD
Pin Count2
Pitchn/a
Solderabilityn/a
Thermal Resistancen/a
Land Arean/a
Heightn/a
3D Modelsn/a
Common UsesNXP RFID inlays

Comments

Exclusively used by NXP for some of their RFID inlays. I’m not sure why they labelled it as a “SOT” package, as it is very different from everything else in this range.

3D Renders

A 3D render of the SOT-1040-1 component package.

A 3D render of the SOT-1040-1 component package.

The 3D model of the SOT-1040-1 component package. Image from http://www.nxp.com/documents/outline_3d/sot1040-1_3d.gif.

The 3D model of the SOT-1040-1 component package. Image from http://www.nxp.com/documents/outline_3d/sot1040-1_3d.gif.

Dimensions

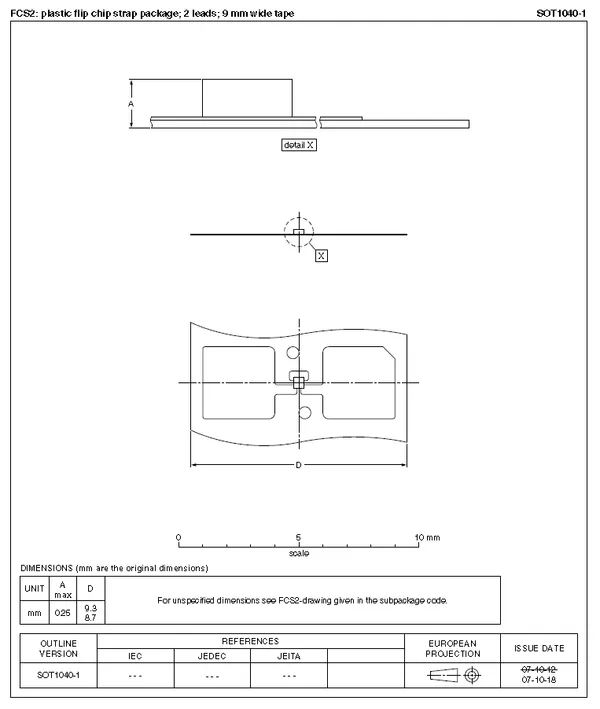

The dimensions of the SOT-1040-1 component package. Image from http://www.nxp.com/packages/SOT1040-1.html.
