TO-PMOD-7 Component Package

Article by:
Date Published:
Last Modified:

Overview

Name Transistor Outline Power Module 7
Synonyms TZA07A (Texas Instruments)
Variants n/a
Similar To n/a
Mounting SMD
Pin Count 7
Pitch 1.27mm (between the six pins, excluding the pad)
Solderability Easy to solder by hand, with a powerful soldering iron (the pad is the hardest part).
Thermal Resistance
  • \(T_{JC} = 1.9^{\circ}{\rm C}/W\)
  • \(T_{JA} = 16^{\circ}{\rm C}/W\) (with the recommended land pattern)
Land Area \(10.16x13.77mm = 140mm^2\)
Height 4.57mm
3D Models

TO-PMOD 7 Pin Package

Common Uses DC/DC power modules (e.g. buck, boost, buck/boost).

Comments

This is a rather large SMD package with good heat sinking ability. Texas Instruments uses this package for some of their DC/DC power modules, which have built in shielded inductors.

3D Renders

A 3D render of the TO-PMOD-7 component package.

A 3D render of the TO-PMOD-7 component package.

A 3D model of the TO-PMOD-7 package.

A 3D model of the TO-PMOD-7 package.

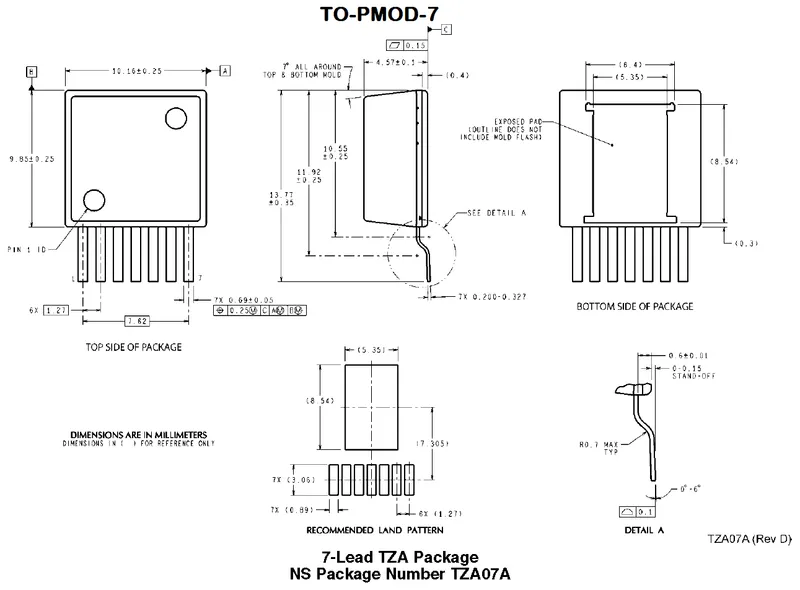

The dimensions and recommended land pattern for the TO-PMOD-7 component package. Image from http://www.ti.com/.

The dimensions and recommended land pattern for the TO-PMOD-7 component package. Image from http://www.ti.com/.
