E-Line Component Package

Date Published:
Last Modified:

Overview

NameE-Line
Synonymsn/a
Variantsn/a
Similar ToTO-92
MountingTH
Pin Count2, 3
PitchMultiples of 2.54mm (100mill)
SolderabilityEasy to solder by hand.
Thermal Resistancen/a
Land Arean/a
Heightn/a
3D Models[E-Line](http://www.3dcontentcentral.com/download-model.aspx?catalogid=171&id=356143)
Common Uses
  • Transistors
  • Voltage References

Comments

Very similar to the common TO-92 package, except it is a little flatter (e.g. squashed looking). The TO-92’s back is semi-circular, while the E-Lines is flat with rounded corners (see the outline and dimensions below). It is footprint compatible with the TO-92 package.

Photos

A photo of the E-Line component package.

A photo of the E-Line component package.

Images

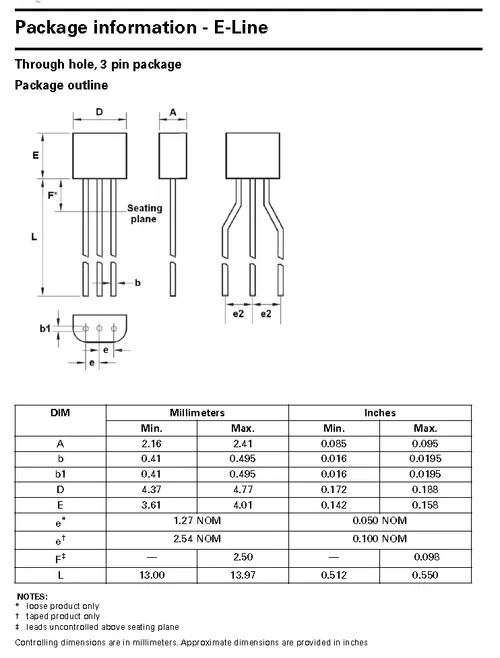

The dimensions for the E-line component package. Image from http://www.diodes.com/zetex/_pdfs/3.0/pack/E-Line.pdf.

The dimensions for the E-line component package. Image from http://www.diodes.com/zetex/_pdfs/3.0/pack/E-Line.pdf.
