System Basis Chips (SBCs)
| Date Published: | |
| Last Modified: |
Overview
A system basis chip (SBC) is a integrated circuit which contains many of the functions of an automotive electronic control unit (ECU) on a single die1.
SBCs are offered by many IC manufacturers including:
- Texas Instruments
- NXP
- Infineon
- STMicroelectronics
![Architecture block diagram of the NXP FS26 SBC[^nxp-fs26-product-page].](https://blog.mbedded.ninja/electronics/components/system-basis-chips-sbcs/_assets/nxp-fs26-architecture-block-diagram.png)

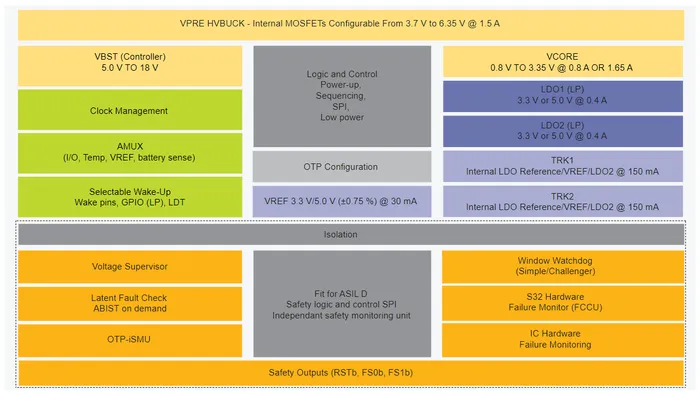

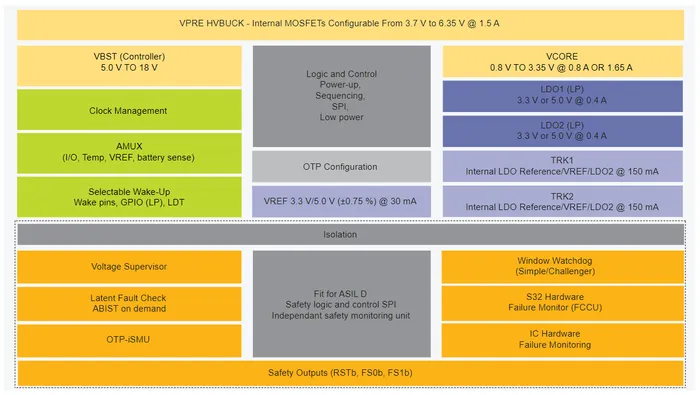

Architecture block diagram of the NXP FS26 SBC2.
SBCs are similar in functionality to power management ICs (PMICs). SBCs appear to have more of a automotive focus with the addition of CAN and LIN transceivers, along with the addition of automotive functional safety blocks (e.g. rated to ASIL-B, ASIL-D) such as fail-safe outputs.
