Overview

SOT-563 (Small Outline Transistor 563) is the JEDEC name for a 6-lead SMD component package. It is very small, and has a 68% smaller footprint than the popular SOT-23 package family.

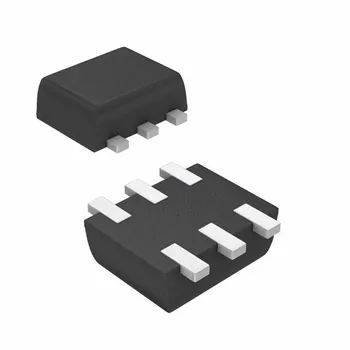

ERROR: fig-sot-563-component-package-3d-render REF NOT FOUND is a 3D render of the SOT-563 package.

A 3D render of the SOT-563 component package.

A 3D render of the SOT-563 component package.

Synonyms

  • DRL|6, or DRL0006A: Texas Instrument’s package code1.
  • SC-89-6: JEITA package code.

Dimensions

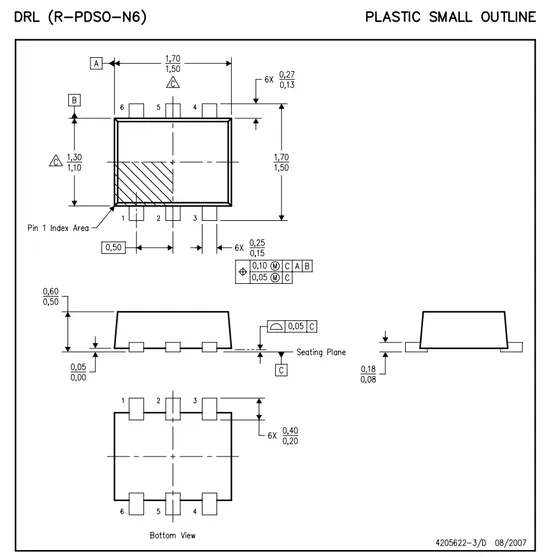

The body is 1.6mm long (sides with the leads) and 1.2mm wide. The width including the leads is 1.6mm. It has a pitch of 0.5mm. ERROR: fig-sot-563-component-package-dimensions-ti-drl-r-pdso-n6 REF NOT FOUND shows the dimensions for the SOT-563 component package as defined by Texas Instruments.

Dimensions of the SOT-563 component package. Image from http://www.ti.com/.

Dimensions of the SOT-563 component package. Image from http://www.ti.com/.

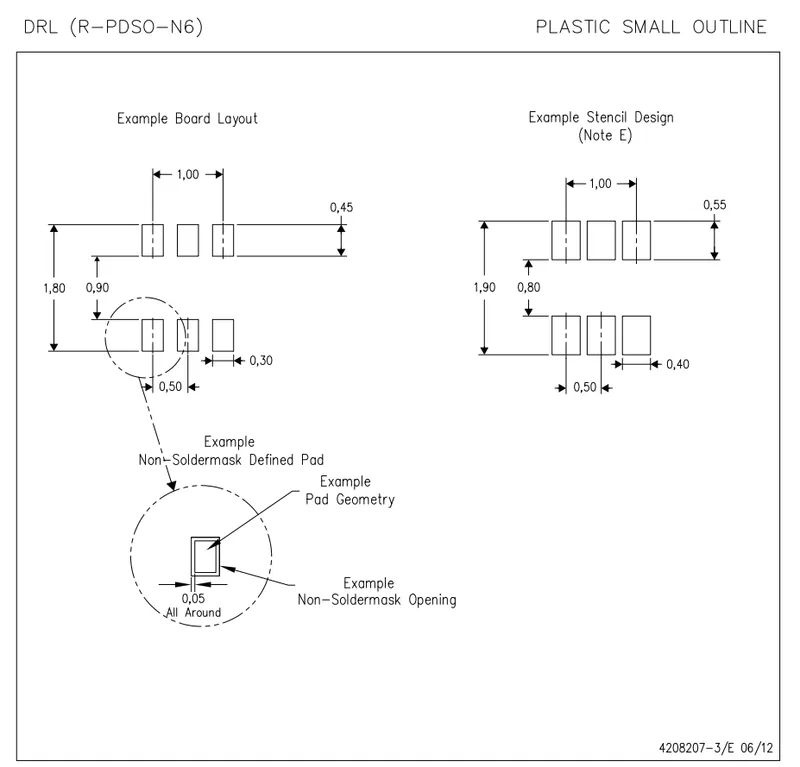

ERROR: fig-sot-563-component-package-recommended-pcb-footprint-ti-drl-r-pdso-n6 REF NOT FOUND shows the recommended footprint for the SOT-563 component package from Texas Instruments. It is 1.30mm long (sides with the leads) and 1.80mm wide, giving a PCB land area of \(2.34mm^2\).

A recommended PCB footprint for the SOT-563 (TI DRL) component package. Image from http://www.ti.com/.

A recommended PCB footprint for the SOT-563 (TI DRL) component package. Image from http://www.ti.com/.

References


  1. Texas Instruments (2017, Jan). SN74LVC1G97 - Configurable Multiple-Function Gate [Datasheet]. Retrieved 2023-07-21, https://www.ti.com/lit/ds/symlink/sn74lvc1g97.pdf↩︎
