Overview

PG-SCT595 (Plastic Green Semiconductor Transistor Package) is a 5-lead gull-wing SMD component package used by Infineon.

A 3D render of the PG-SCT595 package[^digikey-tls105b0mbhtsa1-product-page].

A 3D render of the PG-SCT595 package1.

The Green in it’s name refers to it being Pb-free and suitable for Pb-free soldering2 (which is not special in 2023 — most components are).

Synonyms

  • PG-SCT595-5-1: Infineon3.

Dimensions

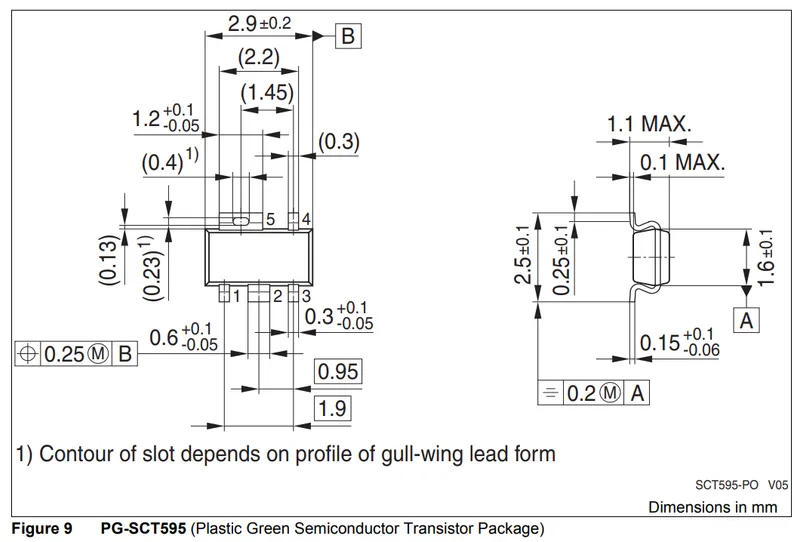

The below image shows the dimensions for the PG-SCT595 package:

The dimensions for the PG-SCT595 package[^infineon-bts3800sl-gate-driver-ds].

The dimensions for the PG-SCT595 package4.

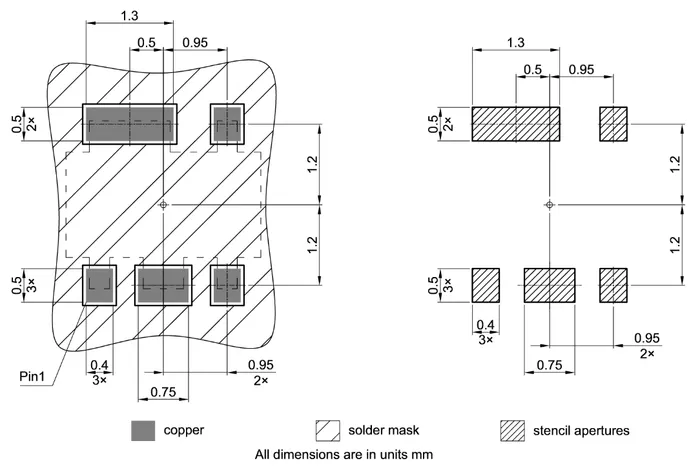

The below image shows the recommended land pattern and solder paste apertures:

The recommended land pattern and solder paste apertures for the PG-SCT595 package[^infineon-pg-sct595-5-1].

The recommended land pattern and solder paste apertures for the PG-SCT595 package3.

Common Uses

  • Gate driver ICs4
  • Linear regulators1

References


  1. DigiKey. TLS105B0MBHTSA1 - Linear Voltage Regulator IC Positive Adjustable 1 Output 120mA PG-SCT595-5 [Product Page]. Retrieved 2023-08-29, from https://www.digikey.com/en/products/detail/infineon-technologies/TLS105B0MBHTSA1/8627139↩︎ ↩︎

  2. Infineon (2023, Jul 25). TLS105B0MB - OPTIREG™ linear voltage regulator [Datasheet]. Retrieved 2023-08-29, from https://www.infineon.com/dgdl/Infineon-TLS105B0MB-DS-v01_00-EN.pdf?fileId=5546d46261ff5777016200cc39952f83↩︎

  3. Infineon. PG-SCT595-5-1 [Package Information]. Retrieved 2023-08-29, from https://www.infineon.com/cms/en/product/packages/PG-SCT595/PG-SCT595-5-1/↩︎ ↩︎

  4. Infineon (2011, Apr 30). BTS3800SL - Small Protected Automotive Relay Driver Single Channel, 800mR [Datasheet]. Retrieved 2023-08-29, from https://www.mouser.com/datasheet/2/196/Infineon_BTS3800SL_DS_v01_01_EN-3160892.pdf↩︎ ↩︎
