C++ PROGRAMMING

Qt

Date Published:
Last Modified:

Overview

Qt is a software framework and library aimed at developing GUIs. It’s primary API is exposed in C++, although it provides the ability to write the UI in JavaScript (or at least partially) through the QML API and has Python bindings through the officially supported PySide2 bindings.

Installation

No matter what platform you are installing Qt Creator on, the amount of disk space required can be very large, depending on the selected “kits”.

Linux

On Debian-like machines (e.g. Ubuntu):

$ sudo apt install qt5-default

macOS

You need at least the Xcode command line tools installed so that Qt Creator can find/use the C++ compiler.

The Qt installer warning you that you need Xcode and the Xcode command-line tools installed. Note that you can make do with just the command-line tools.

The Qt installer warning you that you need Xcode and the Xcode command-line tools installed. Note that you can make do with just the command-line tools.

You can download both Xcode and the Xcode command-line tools from the Apple app store.

The Xcode command-line tools can be installed with:

$ xcode-select --install

Available Qt Kits For macOS:

  • Desktop Qt x.x.x clang 64bit

Qt will typically install into your user directory, including a directory for both the version of Qt and the kit used. For example, using v5.13.0 and the Clang 64-bit kit, the default install path would look something like /Users/<user_name>/Qt/5.13.0/clang_64/.

Windows

Kits:

  • MSVC2017 64-bit
  • MinGW
  • Android

Threading

Qt is designed around an event/listener paradigm (which they call signals and slots) which promotes an event driven design over blocking method calls.

All UI interaction must occur in one thread (the default UI thread). It is not advisable to add blocking calls in this thread as this will make the UI unresponsive while the thread is blocked.

Allowing File Names With Capital Letters

It seems a little strange, that by default, Qt Creator will not allow files with capital letters in them. This was probably done to prevent problems when using FAT32 file systems (e.g. older versions of Windows) that were case insensitive (yet case preserving). However, many common file naming standards for C++ along with many 3rd party libraries will use capital letters. Luckily, you can enable/allow capital letters in file names in the Qt Creator settings:

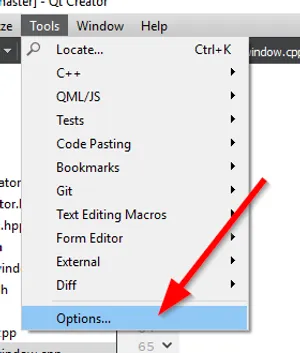

  1. Click Tools from the top menu bar and then click on Options.

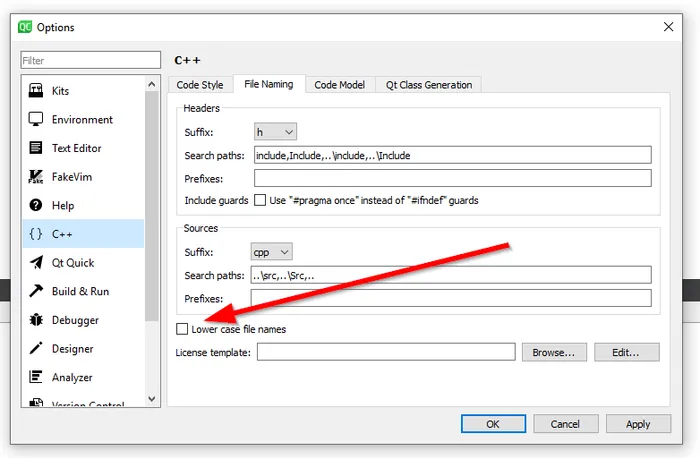

  1. Uncheck the Lower case file names checkbox.
  1. Done!

Serial Port (QSerialPort)

Qt allows you to access serial ports on the machine via the QSerialPort class. Note that serial port operations such as reading and writing must be done from the same thread. In that respect, if you do need to do both reading and writing, it is best not to use a blocking approach for reading, as you can not both block on a read call and send data at the same time. The better alternative is to use the readyRead signal

Compatibility With std Library

Qt Threads and std::condition_variable

In my experience, std::condition_variable seems to work without any issues when within a Qt thread.

Unused Parameter ‘xxx’

Qt can provide warnings when function parameters are unused. This can be a good thing, however it can be annoying and clutter up the compile output when you are purposely ignoring function parameters.

void doSomething(QObject* parent) {
    ...
}

To remove this warning, you can either delete the name of the unused parameter from the function definition:

void doSomething(QObject* /* unused */) {
    ...
}

Or use the Q_UNUSED() macro:

void doSomething(QObject* parent) {
    Q_UNUSED(parent);
    ...
}

Connecting Signals And Slots

Prior to Qt5, you have to use the SIGNAL() and SLOT() macros in the call to connect():

connect(&a, SIGNAL(MySignal(int)), &b, SLOT(MySlot(int));

Qt5 introduced a new syntax for connecting signals to slots:

connect(&a, a::MySignal, &b, b::MySlot);

This new syntax for connect() has the following benefits:

  • Will produce compile errors if the signal/slot does not exist (this is a VERY good advantage)
  • Will produce compile errors if the types do not match (another good pro!)
  • Input parameters do not need to be specified (although this does have its drawbacks when the signal or slot is overloaded, see below)

I recommend the new Qt5 syntax wherever possible!

However, this syntax won’t work if there is more than one signal with the same name (i.e. an overloaded signal). An example of this would be the QComboBox::activated() signal, which has the following two overloads:

void activated(int index)
void activated(const QString& text)

If you were trying to connect the activated(int index) signal to your custom handler, this you would have to do the following:

class A {
signals:
    HandleActivated(int index) : public QObject {
        std::cout << "Handler called!" << std::endl;
    }
};

int main() {
    QComboBox qComboBox;
    A a;

    // This won't work, will throw compiler error!
    connect(&qComboBox, &QComboBox::activated, &a, &A::HandleActivated);

    // Instead, you have to cast to the specific overload of activated that
    // you wish to use
    connect(&qComboBox, static_cast<void (QComboBox::*)(int)>(&QComboBox::activated), this, &A::HandleActivated);
}

QWidget GUI Layout

GUI layout in Qt is done with both QWidget and QLayout objects. The GUI is based upon a hierarchy of QWidget objects. Qwidget objects can have multiple QWidget's as children elements. You can create and assign a QLayout object to a QWidget object (using my_widget->setLayout()), and then the QLayout object will control the layout of the QWidget's children.

Layout Options

QHBoxLayout

GUI Objects

All GUI elements in a standard Qt GUI application inherit from the base class QWidget.

You do not have to manually delete QWidget objects that you have created, as long as they have a QWidget parent which will be deleted.

QScrollArea

A QScrollArea inherits from QWidget and provides a block UI element which allows the user to scroll when the child widget(s) exceed the QScrollArea bounds.

Passing in true to QScrollArea::setWidgetResizeable() gives the scroll area permission to resize it’s child widgets. This means that child_widget.resize() may not have any effect.

QTextEdit

Watching For Text Changes

.hpp:

private slots:
    void onTextChanged();

.cpp:

MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    connect(ui->textEdit1, SIGNAL(textChanged()), this, SLOT(onTextChanged()));
}

void MainWindow::onTextChanged() {
    qDebug() << "Text changed!";
}

Building/Deploying

What is an app bundle?

CICD services which support macOS? Azure does support macOS workers for building/deploying your application. TravisCI currently does not.

Linux

The open-source program linuxdeployqt (available from here aims to mimic the functionality of macdeployqt, but for Linux instead of macOS. It aims to bundle all dependencies together to produce a single file that is executable.

macOS

The Qt installation includes an executable called macdeployqt (located at <Qt install dir>/bin/). This command-line program can be used to create a disk image (.dmg) file from the app bundle.

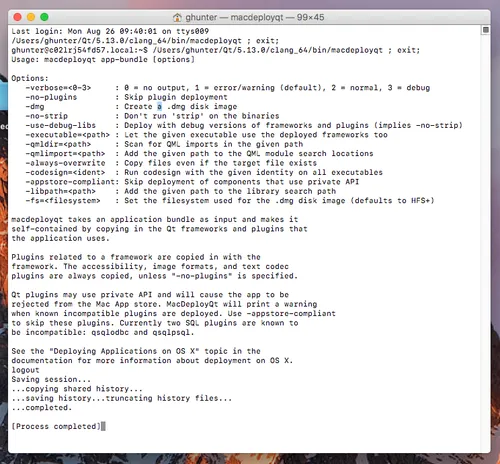

Screenshot of the Qt macdeployqt CLI tool.

Screenshot of the Qt macdeployqt CLI tool.

To create a .dmg file:

$ <Qt install dir>/macdeployqt <path to app bundle> -dmg

Windows
