SMD35 Component Package

Article by:
Date Published:
Last Modified:

Overview

Name SMD35
Synonyms n/a
Variants n/a
Similar To n/a
Mounting SMD
Pin Count 2
Pitch n/a
Solderability You can solder this by hand, due to the pins running up the side of the package for a short distance.
Thermal Resistance 200mW is the maximum power this package can dissipate before you have to consider special PCB footprint designs.
Dimensions
  • WxLxH = 3.50x3.50x0.80mm
  • Land Area = 12.25mm2 (3.50x3.50mm)
3D Models n/a
Common Uses Deep UV LEDs

Comments

Used exclusively by Seti for their range of Deep UV LEDs.

Photos

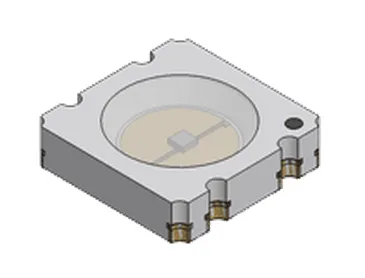

A 3D render of the SMD35 component package.
