SMC (DO-214AB) Component Package

Date Published:
Last Modified:

Overview

NameDiode Outline 214AB
SynonymsSMC
Variantsn/a
Similar To
  • DO-214AA
  • DO-214AC
MountingSMD
Pin Count2
Pitch6.8mm
SolderabilityEasy to solder. The soldering iron needs a bit of juice though, as this package is designed for good heatsinking abilities
Thermal Resistance
  • Tjc = 10-16°C/W
  • Tja = 47-55°C/W (mounted on PCB with 8x8mm copper pad area)
  • Tja = 90°C/W (mounted on PCB with two 1.54x3.14mm copper pads)
Land Area
  • 50.6mm2 (package only)
  • 50.6mm2 (package with recommended land pattern)
Height2.62mm (when mounted)
3D Modelsn/a
Common UsesDiodes (especially high surge-current diodes)

Comments

The largest in the DO-214xx range of diode packages, the DO214AB is a surface-mount package used for diodes that require good heatsinking requirements and/or high-surge current capabilities. Used for general purpose, schottky, and TVS diodes.

3D Renders

A 3D render of the SMC (DO-214AB) component package.

A 3D render of the SMC (DO-214AB) component package.

Images

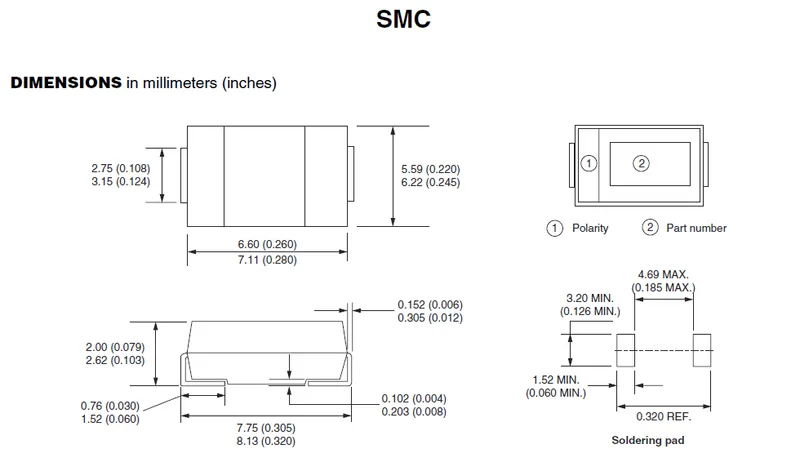

Dimensions and recommended land pattern for the DO-214AB (SMC) component package. Image from Vishay Outline Dimensions: SMC (http://www.vishay.com/docs/95023/smc.pdf).

Dimensions and recommended land pattern for the DO-214AB (SMC) component package. Image from Vishay Outline Dimensions: SMC (http://www.vishay.com/docs/95023/smc.pdf).
