SOT-1226-2 Component Package

Article by:
Date Published:
Last Modified:

Overview

SOT-1226-2 (Small Outline Transistor 1226) is a SMD component package. It has 8 leads with a pitch of 0.5mm.

A unique feature of this package is the diamond-shaped pads.

As of March 2015, NXP seems to be the only manufacturer using this package with the synonym X2SON5. NXP has a series of logic gates and line drivers in this package.

Synonyms

  • X2SON5 (NXP’s name for the SOT-1226-2)1.

3D Render

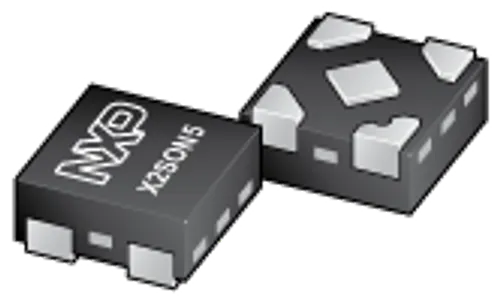

A 3D render of the SOD-1226 component package. Image from http://www.nxp.com/packages/sot1226.html.

A 3D render of the SOD-1226 component package. Image from http://www.nxp.com/packages/sot1226.html.

Dimensions

Dimensions are 0.80x0.80x0.35mm.

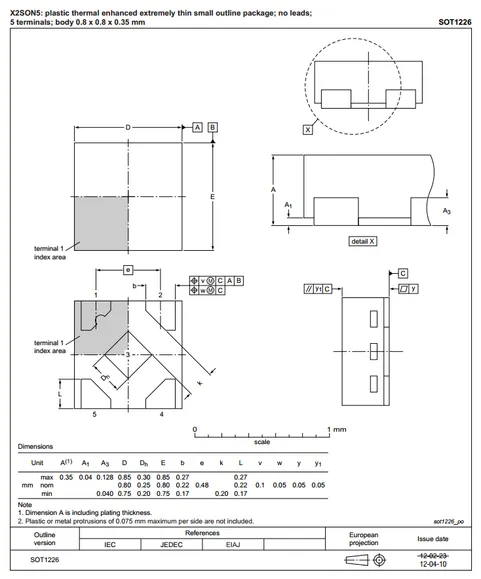

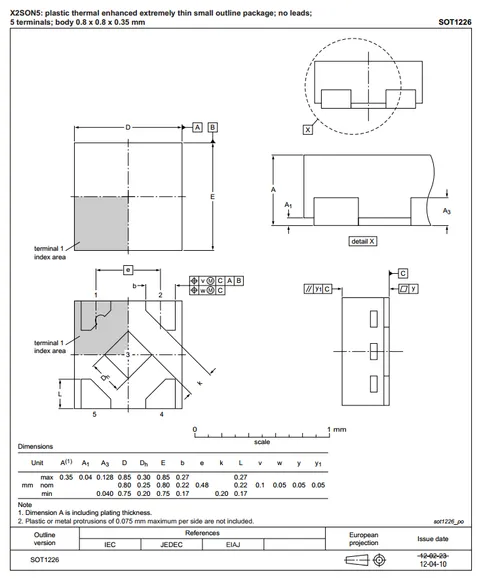

The dimensions of the SOT-1226 component package. Image from http://www.nxp.com/documents/outline_drawing/sot1226_po.pdf.

The dimensions of the SOT-1226 component package. Image from http://www.nxp.com/documents/outline_drawing/sot1226_po.pdf.

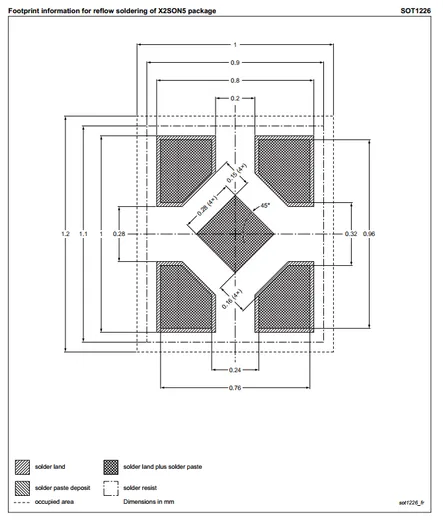

The recommended footprint (land pattern) for the SOT-1226 component package.

The recommended footprint (land pattern) for the SOT-1226 component package.

Solderability

Cannot be soldered with a soldering iron. Requires reflow oven or infrared heater.

References

  1. NXP (2016, Aug 15). SOT1226-2 - plastic thermal enhanced extremely thin small outline package; no leads; 5 terminals. Retrieved 2024-04-03, from https://www.nxp.com/docs/en/package-information/SOT1226-2.pdf. ↩︎
