COMPONENT PACKAGES

SOD-723 Component Package

Date Published:	April 6, 2015
Last Modified:	April 6, 2015

Overview

Name	SOD-723 (Small-outline Diode 723)
Synonyms	n/a
Variants	n/a
Similar To	n/a
Mounting	SMD
Pin Count	2
Pitch	1.1mm
Solderability	n/a
Thermal Resistance	n/a
Land Area	n/a
Height	n/a
3D Models	n/a
Common Uses	Standard diodes TVS diodes

3D Render

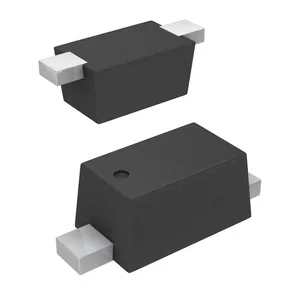

A 3D render of the SOD-723 component package.

Dimensions

2D dimensions drawing of the SOD-723 package. Taken from the NXP SOD-723 datasheet (http://www.nxp.com/documents/outline_drawing/sod723_po.pdf).

Land Pattern

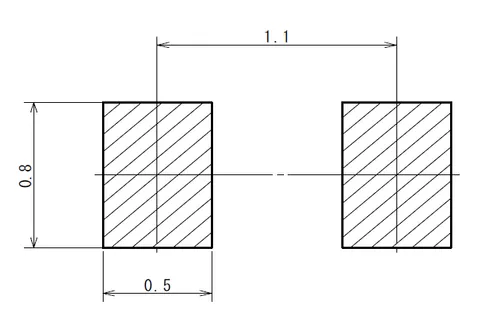

The recommended PCB land pattern for the SOD-723 component package.
