SOT-723 Component Package

Article by:
Date Published:
Last Modified:

Contents

Overview

Name SOT-723 (Small Transistor Outline 723)
Synonyms
  • VMT3 (Rohm Semiconductor)
  • Case 631AA (On Semiconductor)
Variants None
Similar To
Mounting SMD
Pin Count 3
Pitch 0.80mm (distance between the two pad centres on the same side)
Solderability Cannot be soldered with a soldering iron. Requires reflow oven or infrared heater.
Thermal Resistance n/a
Dimensions X = 1.2mm Y = 1.2mm Z = 0.50mm PCB Land Area (package only) = \(1.44mm^2\) PCB Land Area (incl. recommended footprint) = \(1.88mm^2\)
3D Models
Common Uses
  • MOSFETs
  • Digital transistors (BRTs)
  • Small-signal switching diodes
  • Low power rectifiers
  • ESD diodes

3D Renders

Here is a 3D render of the SOT-723 component package.

A 3D render of the SOT-723 component package.

A 3D render of the SOT-723 component package.

Dimensions

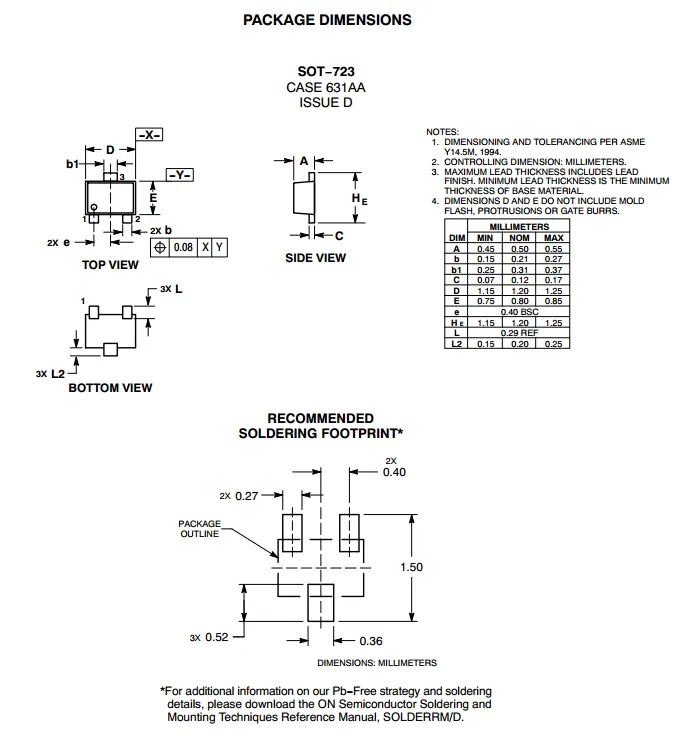

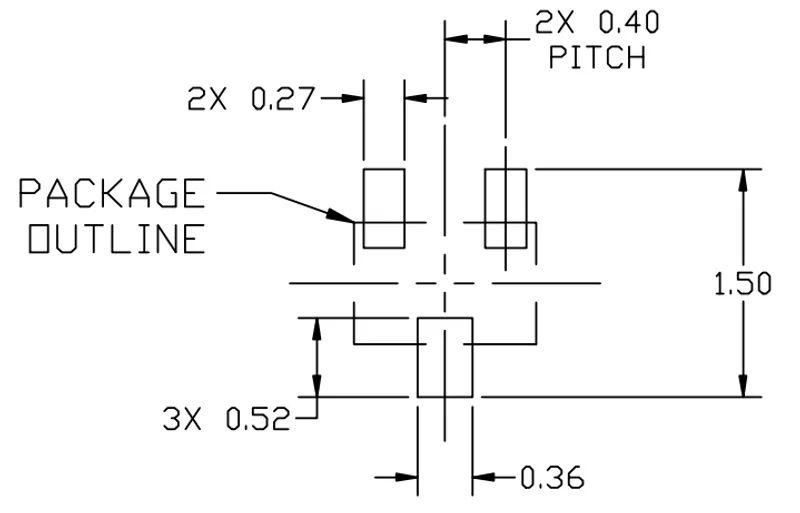

Here are the dimensions and a recommended footprint for the SOT-723 component package.

Dimensions and a recommended footprint for the SOT-723 component package. Image from http://www.onsemi.com/pub_link/Collateral/ESD7C3.3D-D.PDF.

Dimensions and a recommended footprint for the SOT-723 component package. Image from http://www.onsemi.com/pub_link/Collateral/ESD7C3.3D-D.PDF.
