QIP Component Package

Article by:
Date Published:
Last Modified:

Overview

Name Quad Inline Package
Synonyms QIL
Variants n/a
Similar To
Mounting TH
Pin Count 4-24
Pitch 2.54mm (100mill)
Solderability Very easy to solder by hand.
Thermal Resistance n/a
Dimensions n/a
3D Models n/a
Common Uses n/a

Comments

Has four rows of pins. Used in the 1970’s when single-sided boards with through-hole components was common. Allowed tracks to be run between pins.

Photos

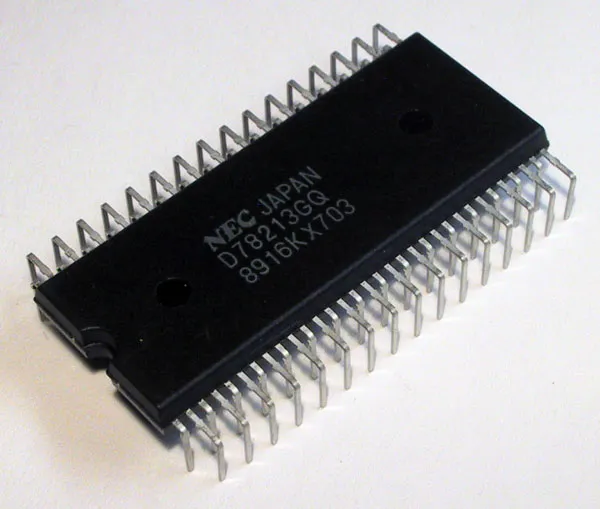

A photo of the QIP component package.

A photo of the QIP component package.
