COMPONENT PACKAGES
WOG Component Package
Article by:Geoffrey Hunter
Date Published: | |
Last Modified: |
Contents
Overview
Name | WOG |
Synonyms | n/a |
Variants | n/a |
Similar To | n/a |
Mounting | TH |
Pin Count | 4 |
Pitch | 5.08mm (200mill) |
Solderability | Easily soldered with a soldering iron |
Thermal Resistance | n/a |
Land Area | n/a |
Height | 10mm (can vary from 4-25mm due to the long through-hole leads) |
3D Models | n/a |
Common Uses | Bridge rectifiers |
Comments

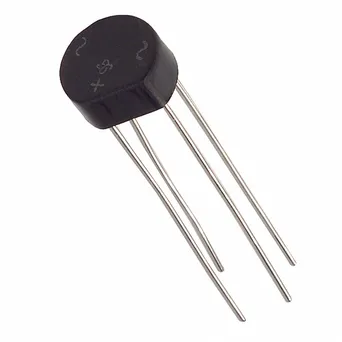

A cheap, cylindrical plastic package used for smaller (low power) through-hole full-bridge rectifiers. Uses a glass-passivated construction.
