SOT-227 Component Package

Authors:
Geoffrey Hunter
Geoffrey Hunter
Published On:
Apr 2, 2026
Last Updated:
Apr 2, 2026

SOT-227 is a high-power package with M4 screw terminals. It is used by companies such as Vishay and IXYS for diodes (an example rating is a 1200V, 140A diode). In many cases, all four electrical terminals are isolated from the backside (which is designed to be bonded to a heatsink).

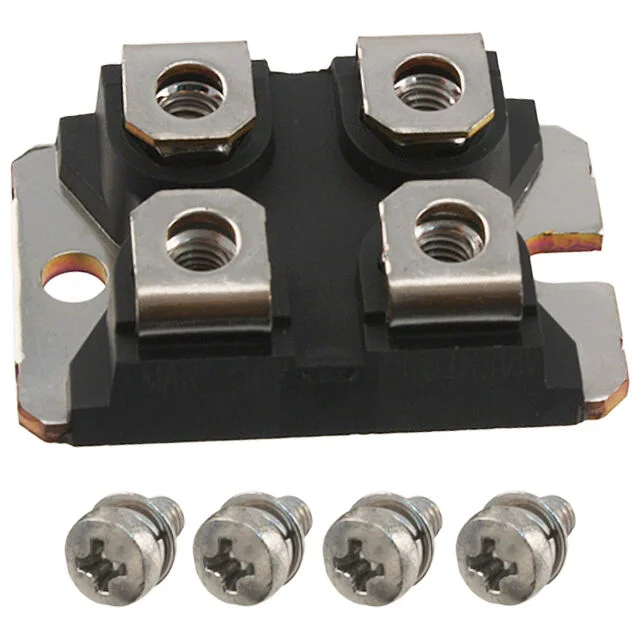

A photo of the SOT-227 component package.1

Synonyms

  • ISOTOP: Microsemi’s package name.2
  • SOT-227-4, miniBLOC: DigiKey’s package name.
  • minibloc: IXYS’s package name.3
  • SOT-227B: Package name used by IXYS and Littelfuse (the B might be referring to either “backside”, “bonded” or perhaps the second revision of the package, just like Vishay’s “Generation 2” dimensions).3 4

Dimensions

The dimensions of the Vishay SOT-227 component package are shown in This is a placeholder for the reference: fig-sot-227-vishay-gen-2-dimensions. Note these are specified as the “Generation 2” dimensions (I’m not sure what Generation 1 dimensions are).

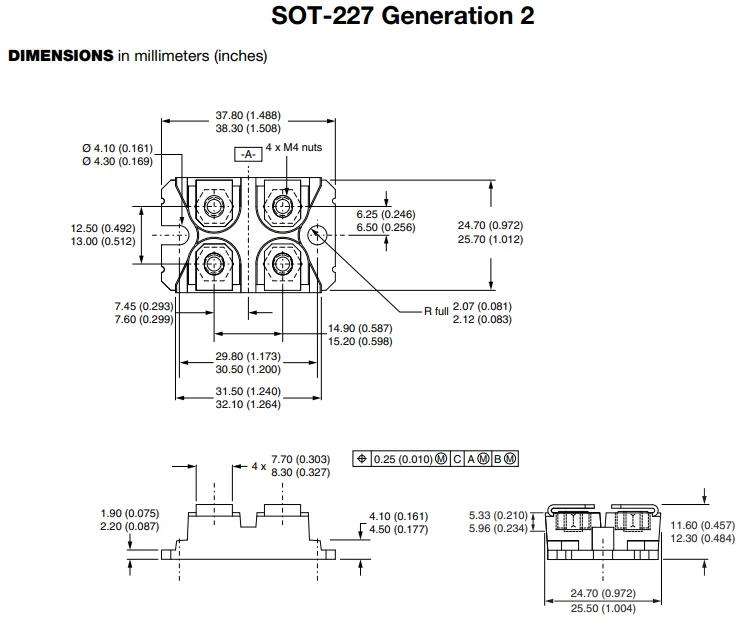

The dimensions of the SOT-227 component package from Vishay.5

Thermal Resistance

To pick on a specific example in the SOT-227 package, the Vishay VS-HFA140FA120 HEXFRED 140A ultrafast soft recovery diode has a junction-to-case thermal resistance of RθJC=0.35∘C/WR_{\theta JC} = 0.35^{\circ}C/W (max.) when one of the legs is conducting, and RθJC=0.175∘C/WR_{\theta JC} = 0.175^{\circ}C/W (max.) when both legs are conducting. It has a very low case-to-heatsink thermal resistance of RθCS=0.05∘C/WR_{\theta CS} = 0.05^{\circ}C/W (typ.).6

Microsemi’s application note Mounting Considerations for the SOT-227 Package provides some in-depth information on the thermal performance of the SOT-227 package.2
