LFPAK is a family of surface-mount power packages primarily used for power MOSFETs. It was originally developed by Nexperia (the first LFPAK, the LFPAK56 was released in 20021) as a higher performance alternative to the DPAK/D2PAK packages. Rather than internal bond wires it uses a large copper clip, which reduces package electrical and thermal resistance. It appears that the package is still exclusively used by Nexperia.

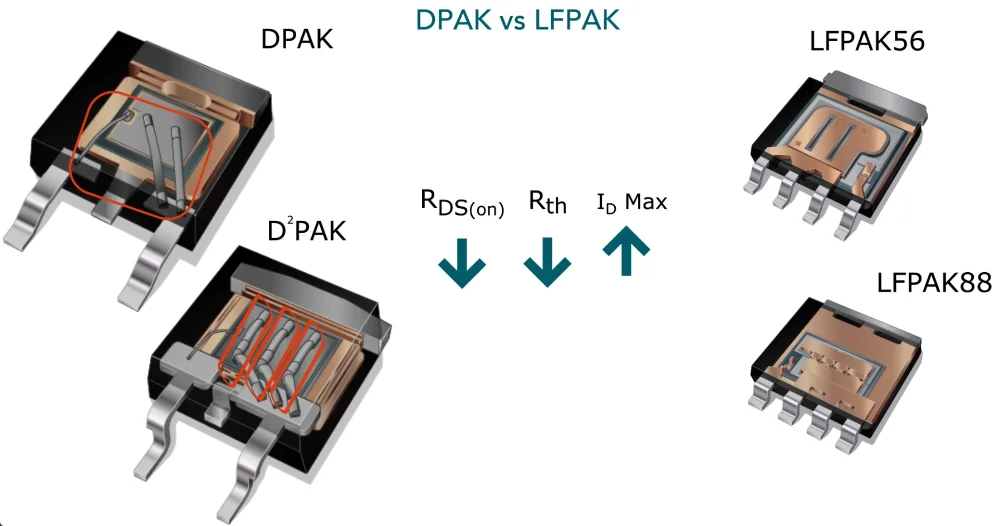

A screenshot from a Nexperia video comparing the DPAK/D2PAK and LFPAK packages.2

The LFPAK packages were released in the following order:

  • LFPAK56: Released in 2002.
  • LFPAK56E: Released in 2008.
  • LFPAK33: Released in 2010.
  • LFPAK56D: Released in 2011.
  • LFPAK88 (SOT-1235): Released in 2019. Quoted as providing 2x higher continuous power rating compared to the D2PAK package.

LFPAK33

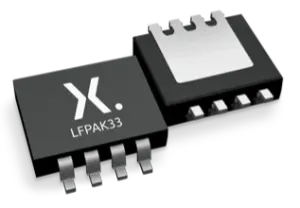

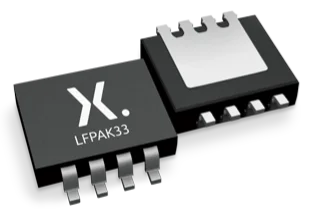

A 3D render of the LFPAK33 (SOT-1210) package.3

LFPAK33 is a small package in the LFPAK family, with a footprint of 3.3 x 3.3 mm. It allows for max. continuous MOSFET drain currents of about 70 A.4 Also known as the SOT-1210.5

Synonyms

  • SOT-1210: Another name by Nexperia for the LFPAK33 package.

Dimensions

PropertyValue
Leads8
Pitch0.65 mm
Body Length (D)2.6 mm
Body Width (E)3.3 mm
Body Height0.9 mm
Footprint3.3 x 3.3 mm
Footprint Area10.89 mm²

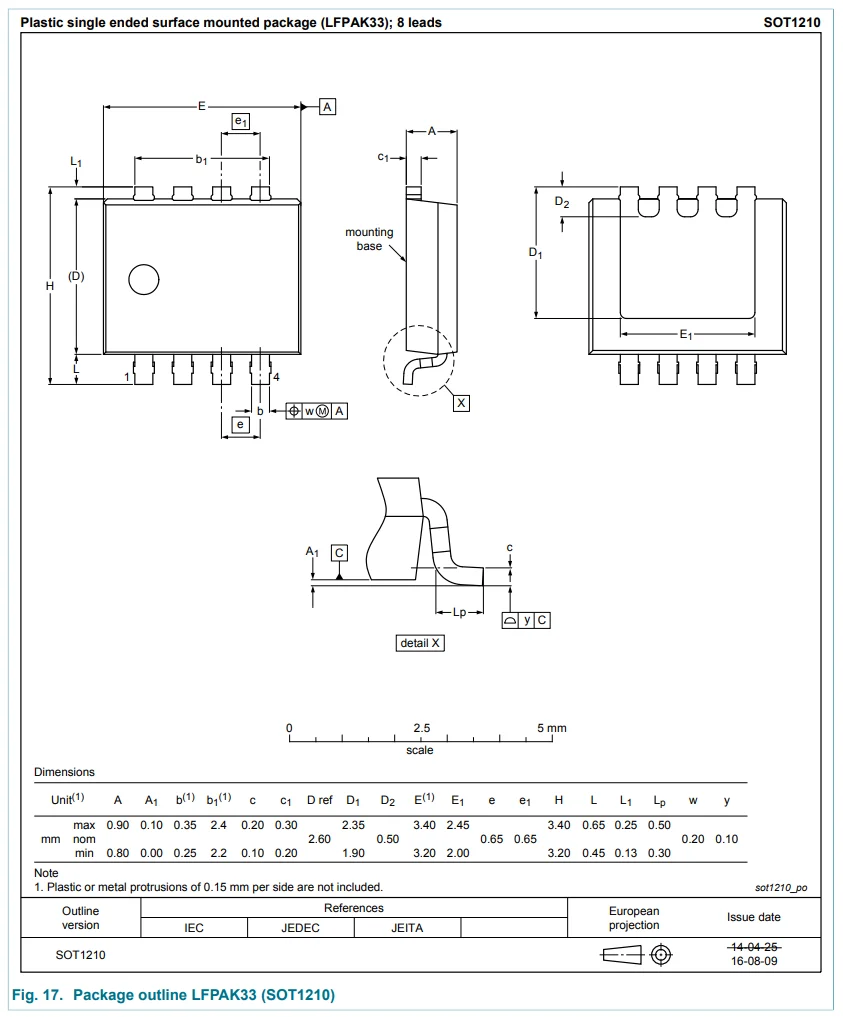

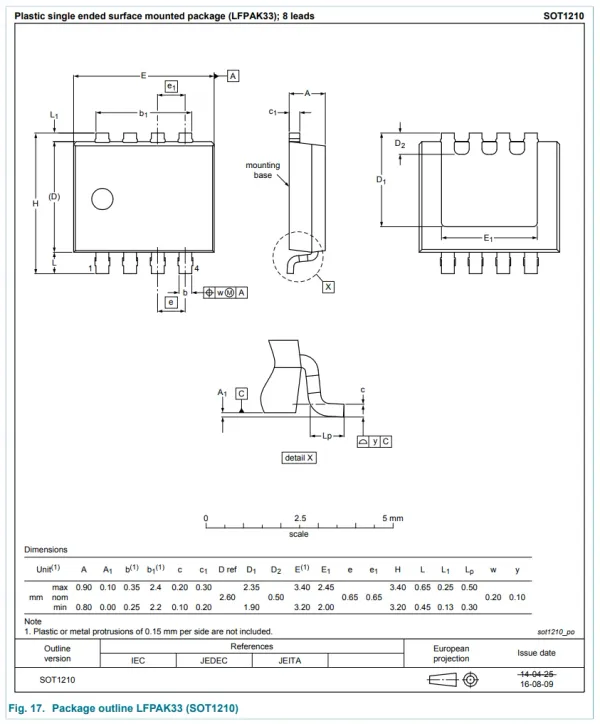

The dimensions of the LFPAK33 (SOT-1210) package.6

Similar To

The following packages from other manufacturers can all be soldered onto a common PCB footprint:4

  • AOS DFN3.3x3.3
  • EMC EDFN 3x3
  • Fairchild MLP08S
  • Fairchild PQFN08B
  • Infineon TSDSON-8
  • On Semi Micro8 Leadless
  • Vishay PowerPak 1212-8

Diodes Inc has a similar package called the PowerDI3333. There is a published footprint by Diodes Inc (shown below) that is compatible with both the LFPAK33 and PowerDI3333 packages.7 It may also be compatible with the other packages listed above.

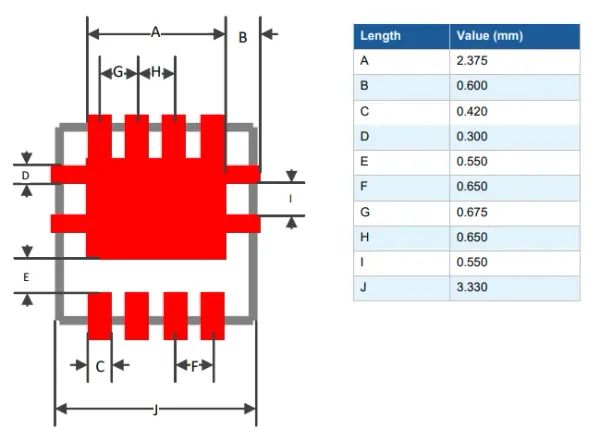

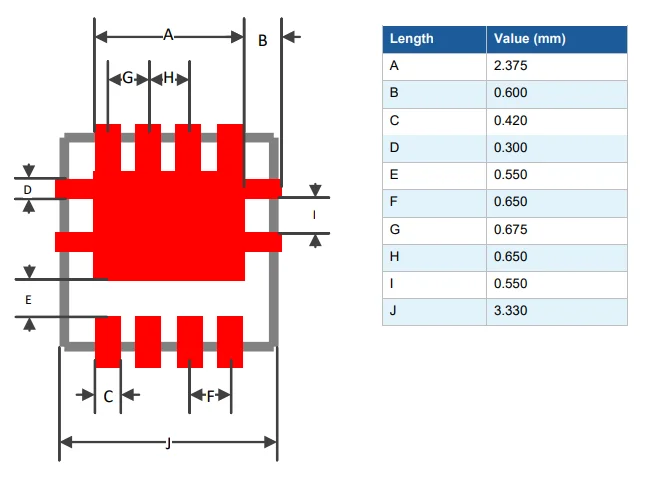

A combined footprint for the LFPAK33 and PowerDI3333 packages, published by Diodes Inc.7

LFPAK56

The LFPAK56 package was the first package released in the LFPAK family.1. It also called the SOT-669.8 It is commonly classed in a group of similar packages called Power-SO8. This includes other packages such as the Vishay PowerPAK SO8 and Infineon Super SO8 (see the Similar To section for more details). It allows for max. continuous MOSFET drain currents of about 100 A.4

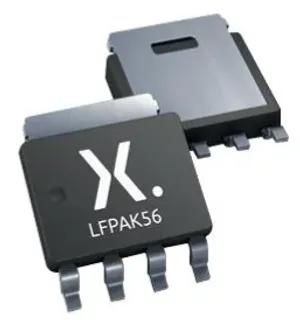

A 3D render of the LFPAK56 (Power-SO8) package.

The LFPAK56 package offers significant PCB space savings compared to the DPAK/D2PAK packages, as shown in This is a placeholder for the reference: fig-dpak-d2pak-vs-lfpak56-nexperia.

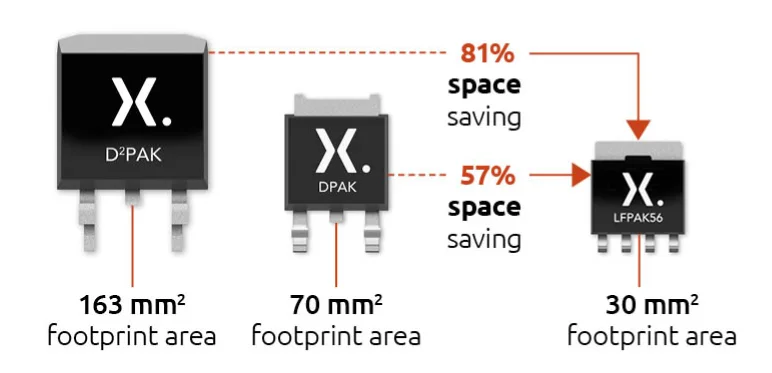

A comparison between the DPAK/D2PAK packages and the LFPAK56 package.9

Dimensions

Values are nominal or typical body dimensions from Nexperia SOT669 unless noted. The package is rated for 4 terminations (n2); the PCB footprint follows a 5 x 6 mm Power-SO8 style land pattern.10

PropertyValue
Leads4
Pitch1.27 mm
Body Length (D)3.95 mm
Body Width (E)4.9 mm
Seated Height (A)1.1 mm
Footprint5 x 6 mm
Footprint Area30 mm²

The dimensions of the LFPAK56 package are shown in This is a placeholder for the reference: fig-lfpak56-dimensions.

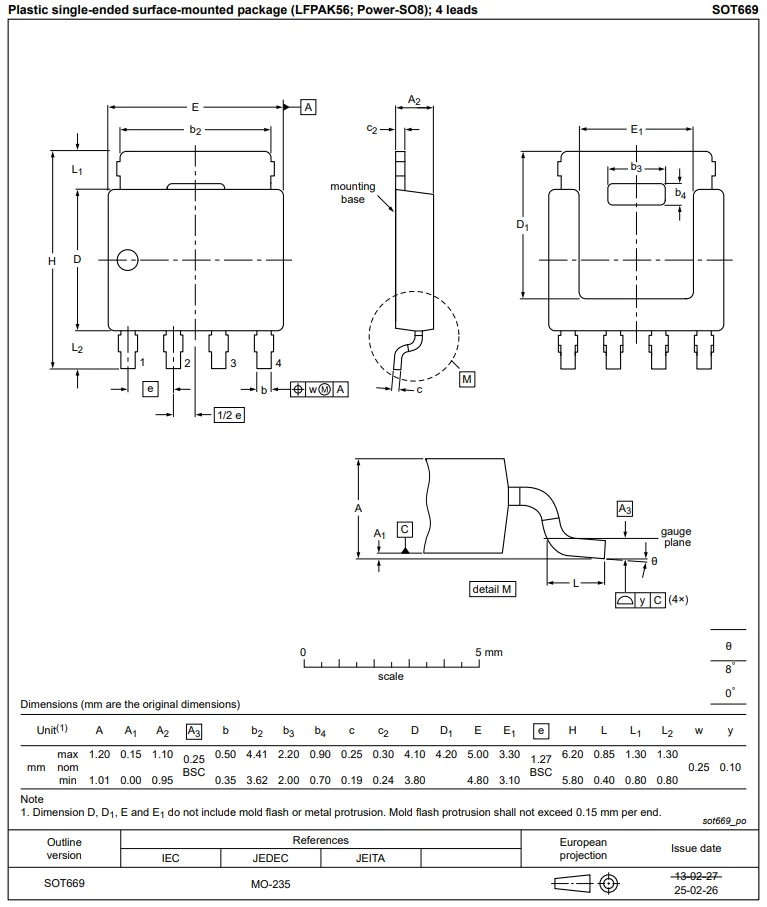

The dimensions of the LFPAK56 package.10

Footprint

The recommended footprint for the LFPAK56 package is shown in This is a placeholder for the reference: fig-lfpak56-footprint.

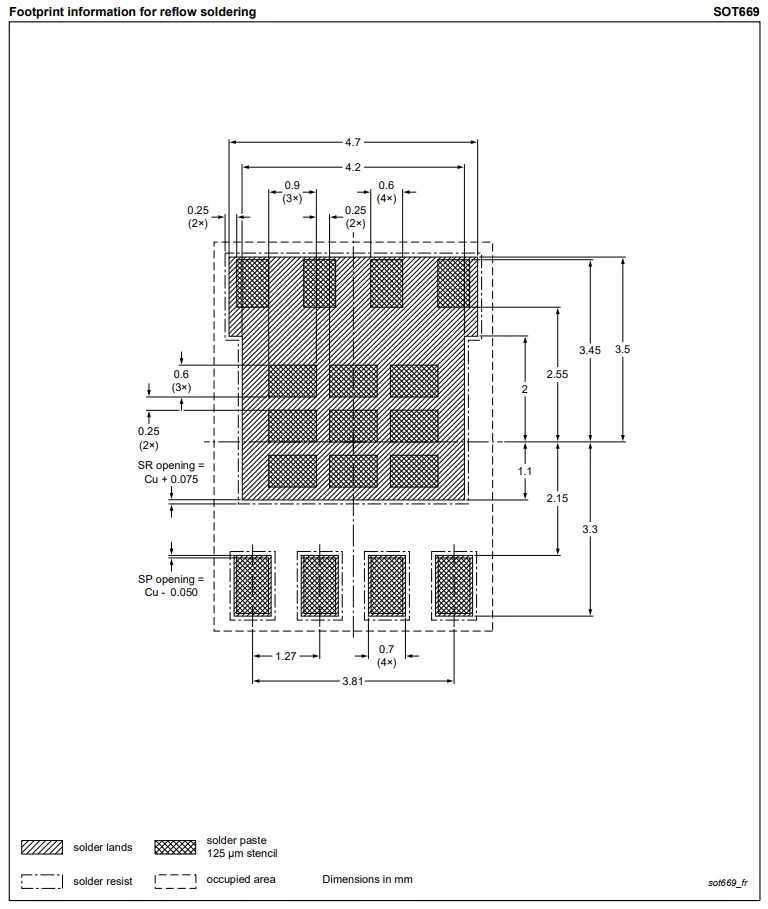

The footprint of the LFPAK56 package.10

Similar To

The LFPAK56 is similar to the packages listed below. All of the below packages can be soldered onto a common PCB footprint.4

  • Fairchild Power 56
  • Infineon Super SO8
  • NEC HVSON-8
  • On Semi DFN6
  • STM PowerFlat 6x5
  • Vishay PowerPAK SO8: The PowerPAK SO8 is a Vishay package that is commonly classed as “footprint compatible” with the LFPAK56 package.

LFPAK56E

LFPAK56E is an enhanced version of the LFPAK56 package, with an optimized lead frame and package design which results in an improved RDS(on)R_{DS(on)} and power density improvement of up to 30%.11

LFPAK88

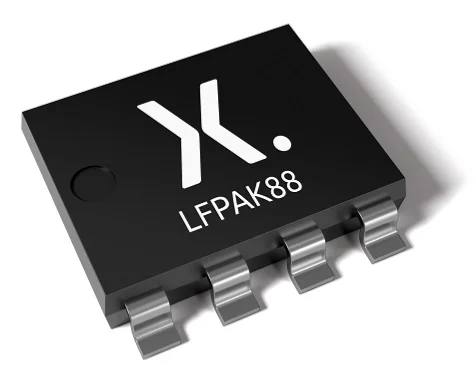

A 3D render of the LFPAK88 (SOT-1235) package.12

Also known as the SOT-1235.13

Dimensions

Values are nominal or typical body dimensions from Nexperia SOT1235 unless noted.14

PropertyValue
Leads4
Pitch2 mm
Body Length (D)6.3 mm
Body Width (E)8 mm
Body Height1.6 mm
Footprint9.4 x 9.2 mm
Footprint Area86.48 mm²

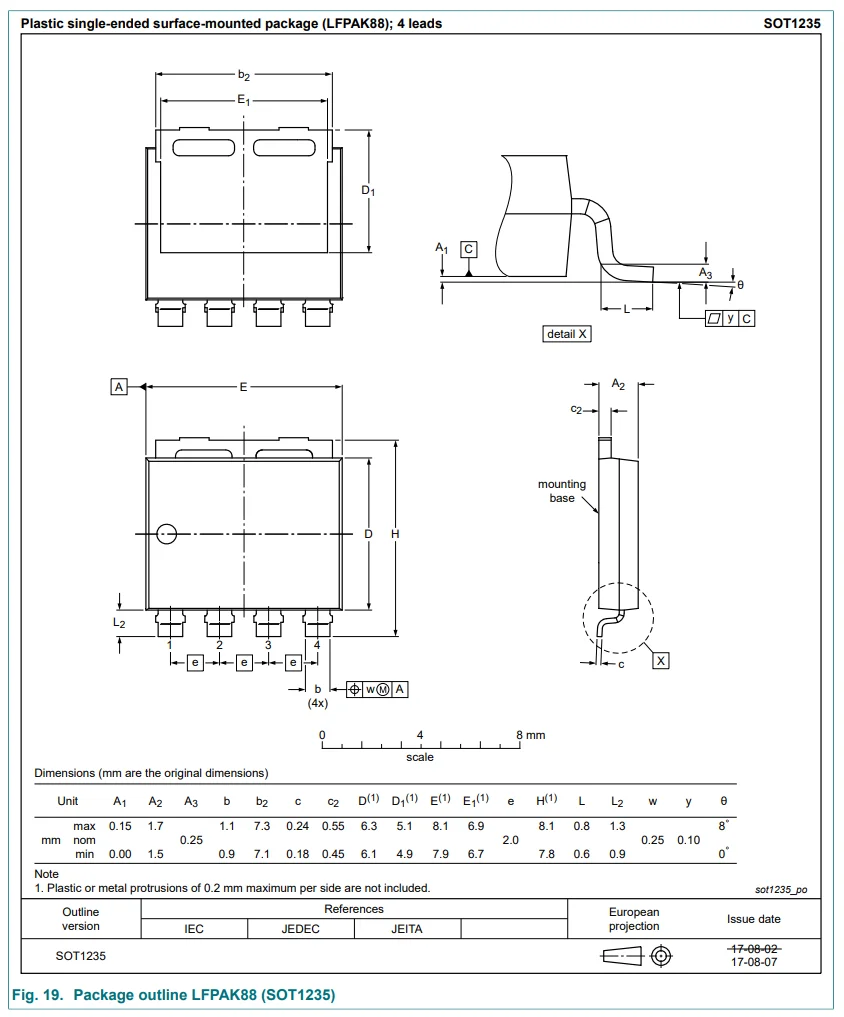

The dimensions of the LFPAK88 (SOT-1235) package from Nexperia.13

Footprint

The recommended footprint for the LFPAK88 package is shown in This is a placeholder for the reference: fig-lfpak88-recommend-footprint.

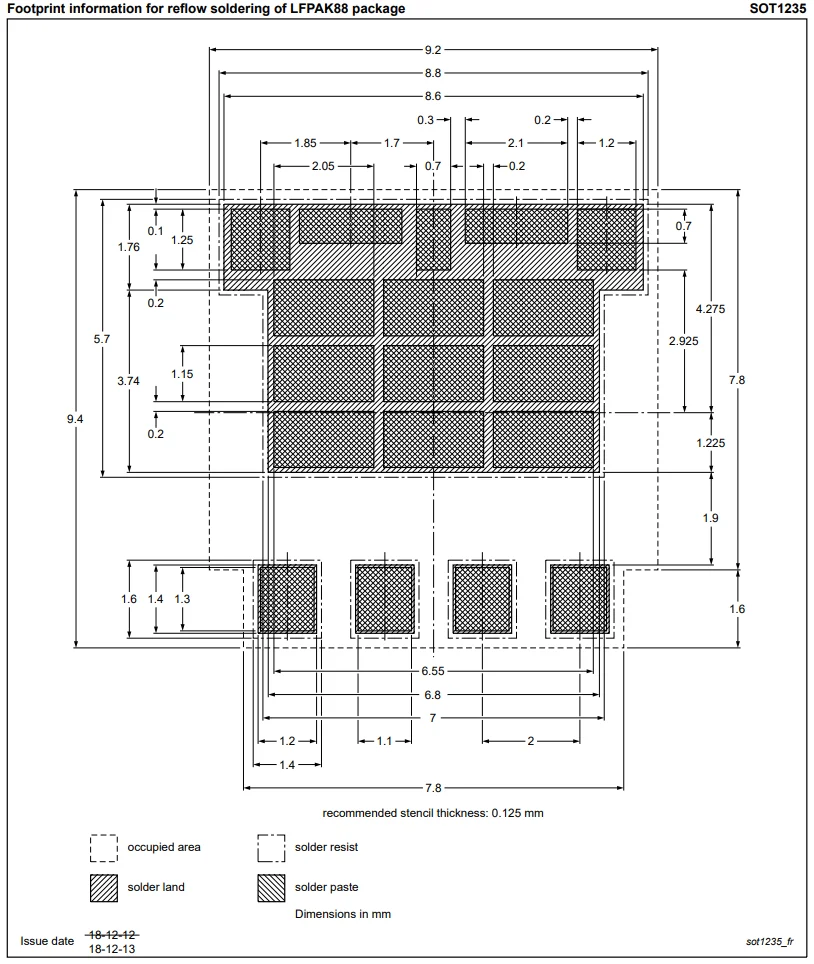

The recommended footprint for the LFPAK88 package.14

Similar To

  • DPAK: The DPAK is an older and less performant alternative to the LFPAK package.
  • D2PAK: The D2PAK is an older, larger alternative to the LFPAK package.
