Capacitive Touch Sensing
Capacitive touch sensing is a relatively new interface method for electronics, which probably owes at least some of it’s popularity with the iPhone (although capacitive touch interfaces did exist a long time before them).
Types Of Interfaces
- Buttons
- Sliders
- Wheels
Detection Methods
There are two main methods, single and differential.
Detection Limits
Most capacitance detection hardware has VERY good resolution and can detect capacitance changes as small as or less than one femto-Farad (that’s 1x10^-15F). Considering a finger coming close to a copper pad increases the resistance by about 1pF (1x10^-12F), this can detect changes a 1000 times smaller!

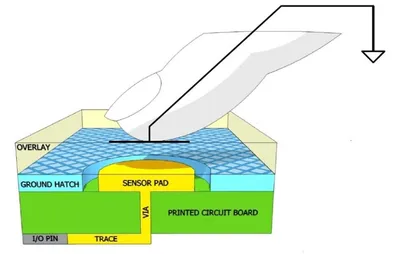

Buttons

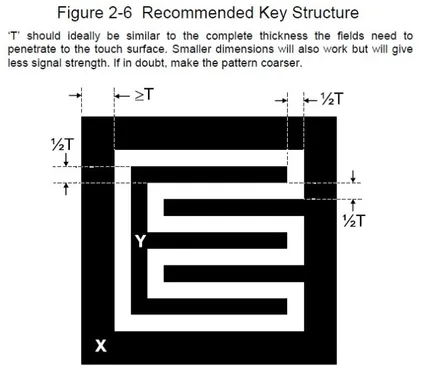

The button footprint can vary between the designs. One of the easiest is simply a copper circle (typically around 10mm in diameter).
ESD Protection
ESD protection can be important in certain applications due to the human body getting very close to the capacitive touch pads, which can capacitively couple static into the system. However careful consideration must be taken in what ESD protection is employed as to not affect the circuits operation. In general, TVS diodes are unacceptable as their parasitic capacitance and leakage currents greatly reduce the button sensitivity. Series resistors are a much better option (between 50 and 200R).
The Silicon Labs application note AN376 explains this in greater detail.
Manufacturers
The Cypress range of PSoC micro-controllers have in-built hardware to support self-capacitance touch sensing.
Analog Devices make a range of stand-alone capacitance sensing chips that use mutual capacitance and range from 12 to 24-bit.
Useful Links
Physical Design And Layout Guidelines For Capacitive Sensor Systems (SMSC) - http://www.smsc.com/media/Downloads/Application_Notes/an1916.pdf
Capacitive Touch Sensing Layout Guidelines (Semtech) - http://www.semtech.com/images/datasheet/capacitive-touch-sensing-layout-guidelines-an.pdf
