SOIC Component Package

SOIC is the name for a family of SMD component packages that have gull-wing leads on two sides of the package. SOIC is a very popular package and is commonly used to house integrated circuits (ICs).

Caution

There are are three different widths of SOIC packages, all which can be referred to as just SOIC by manufacturers in component datasheets! When designing a PCB, make sure to double-check the exact package width matches the PCB footprint/land pattern you’ve chosen.

1. Package body width of 3.80mm (0.150”). JEDEC standard, commonly used for SOIC packages with a small pin count (16 or less).
2. Package body width of 5.30mm (0.208”). EIAJ standard¹, used for SOIC packages with higher pin counts (>16) or for isolated ICs (e.g. Maxim package SOIC [W8]²).
3. Package body width of 7.52mm (0.300”). JEDEC standard, commonly called SOIC Wide or SOIC-W (e.g. Maxim package SOIC (W) variant W20+6)³.

More on these different width SOIC packages below.

Synonyms

• 11-4M1S (Toshiba SO-4, 4.55mm wide body)⁴
• 751EP (onsemi SOIC4 W⁵)
• R-PDSO (JEDEC wide body SOIC, 7.5mm width, 0.65mm pitch)
• S8 (SOIC-8, Analog Devices)
• S8E (Linear Technologies, SOIC-8 with exposed pad)
• SO (ST Microelectronics)
• SOIC8E (SOIC-8N with exposed pad, Monolithic Power Solutions⁶)
• SOT162-1 (SOIC-16W, NXP⁷)
• SSOP4/LSOP04 (onsemi, SO-4, 7.5mm wide body)⁸
• WSON (SST, this is a package which shares the same footprint as a SOIC but has a smaller height, not to be confused with the different SON package)

SOIC (JEDEC, 0.150” Package Body Width)

The JEDEC version of the SOIC (a.k.a SOIC-xN (SOIC narrow)) family of packages is governed by the JEDEC MS-012-AA standard. There are non-exposed (normally just referred to as SOIC-x or SOIC-xN) and exposed pad versions (which are normally indicated with an “E” in the package name⁶).

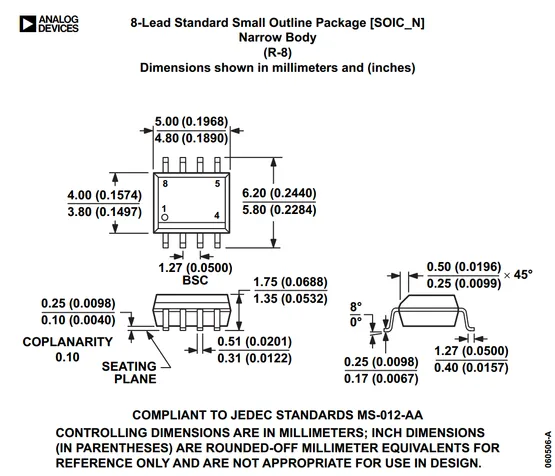

The dimensions for the SOIC-8N package are shown below:

The dimensions for the SOIC-8N component package.

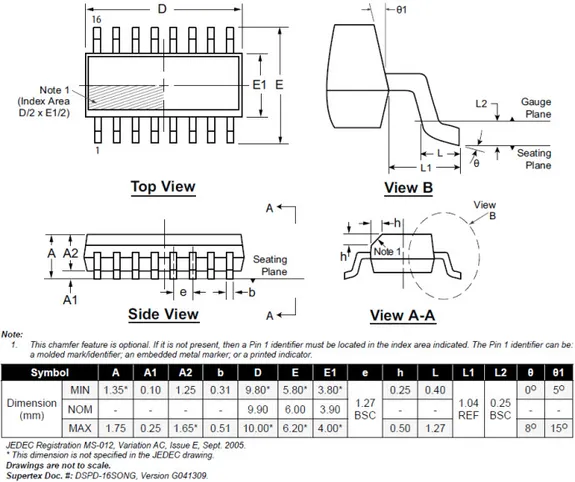

The dimensions for the SOIC-16N component package are shown below:

The dimensions for the SOIC-16N component package.

Land area:

• SOIC-8: 29.4mm2

Thermal resistance:

• SOIC-8: 70.6K/W (pads only, no copper fill)
• SOIC-8: 55K/W (6cm2 of copper, ground pins attached internally to die)
• SOIC-8: 33.5K/W (1 square inch of copper surrounding package, connected to ground)

SOIC (EIAJ, 0.208” Package Body Width)

Confusingly, the EIAJ standard defines a different body width of 5.3mm (0.208”) for the `SOIC“ package, compared to the 3.8mm body width as defined in the JEDEC standard¹. Generally used for ICs with a larger number of pins (>16).

SOIC-W (JEDEC, 0.300” Package Body Width)

The SOIC-W (SOIC wide) family of packages is governed by the JEDEC MS-013 and IEC 075E03 standards. NXP’s SOT-162-1 package is a SOIC-16W⁷.

Package Name	Land Area
SOIC-16W	136.3mm² (11.9x11.45mm)7
SOIC-28W	186.4mm² (10.3x18.1mm)

Pitch

Most SOIC packages have a pitch of 1.27mm (50mil) and usually have Gullwing leads. When used for regulators, sometimes the many ground pins are connected internally to the die attach flag, providing better heat sinking capabilities. SOIC packages use leadframe technology.

The SOIC package R-PDSO defined by JEDEC has a non-standard pitch of 0.65mm (and the standard wide body width of 7.5mm).

Pin Numbering

Pin numbering is the same as a DIP package, in that pin 1 is at the top left, and then pins are numbered sequentially down the left-hand side, then up the right hand-side.

Polarity Marks

There are three ways of indicating the polarity on a SOIC package. The first two, a dot or a notch, indicate pin 1 or the top of the chip. The third way is not so obvious, and features a bevelled edge along the side that pin 1 is on (so for SOIC-8, the bevelled edge would be on the side with pins 1 to 4).

Related Packages

The WSON package by SST is lower in height than a standard SOIC package, but is designed to use the same PCB footprint.

Adapter PCBs

Adapter PCBs for the SOIC family of packages are widely available due to the popularity of the package.

SparkFun makes a SOIC-8 to DIP-8-300 adapter PCB.

A SOIC-8 to DIP-8-300 adapter PCB by SparkFun.

Thermal Resistance And Power Dissipation

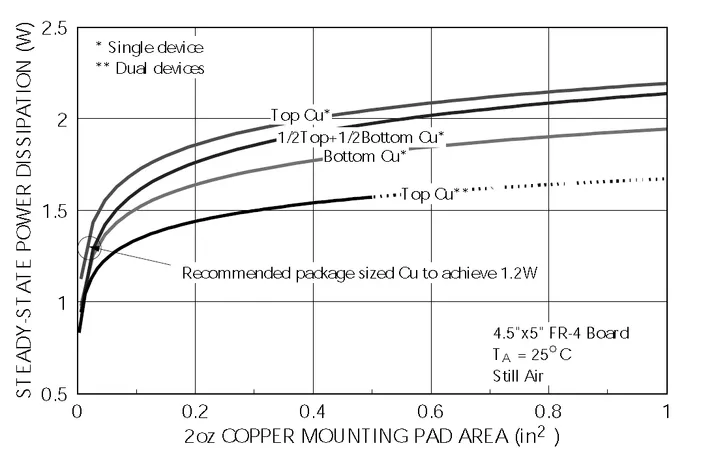

This graph shows the maximum power dissipation for the SOIC-8N component package, for various PCB copper areas.

Maximum power dissipation graphs for the SOIC-8N component package.

Standard Pinout For MOSFETs

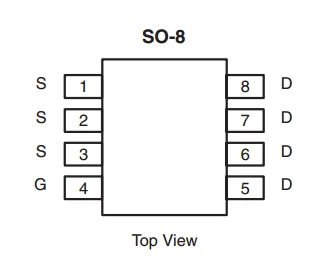

The SOIC-8 component package is commonly used for medium-power N and P-channel MOSFETs. Most of these MOSFETs have the exact same pinout (both N and P-Channels!), as shown in the below diagram.

Note

As far I’m aware, this is not specified in any standard, but is just an industry default. Also, this only applies to SOIC-8 packages with 1 MOSFET inside them.

The standard pinout for a single MOSFET (N or P-channel) in a SOIC-8 package.

Examples that follow this pinout include the ST STS25NH3LL (N-channel), the International Rectifier IRF8721PbF-1 (N-channel), and the Vishay SI9407BDY-T1-GE3 (P-channel).

SOIC-4 (SO-4)

The SO-4 package is quite unique from other SO packages. It typically has the same mechanical dimensions as a SO-6 package, but has the two middle pins on either side removed. Typically the SO-6 pin numbering is also kept, such that the remaining pins are numbered 1, 3, 4 and 6. Due to the large clearances between the pins and on the package, this SO-4 package is used for optical isolators.

The SO-4 package is different to the SOIC-4 package, even though these two different names refer to the same package at higher pin counts.

ON Semiconductor uses the case code 751EP for the SOIC-4W package⁵.

Common Uses

• Linear regulators.
• Drivers/buffers.
• High-power MOSFETs (normally in a SOIC-8N, with one pin for the gate, and either 3 or 4 pins for the drain and source).

Similar To

• QFP: Another SMD package used for ICs with gull-wing leads (QFP has leads on all four sides of the body).
• SOJ: Similar body sizes to SOIC, but with J-type leads instead of gull-wing leads.
