SMB (DO-214AA) Component Package

Article by:
Date Published:
Last Modified:

Overview

NameDiode Outline 214AA
SynonymsSMB
Variantsn/a
Similar To
  • [DO-214AB](../do-214aa-component-package)
  • [DO-214AC](../do-214ac-component-package)
  • DO-214AC
MountingSMD
Pin Count2
Pitch3.97mm
SolderabilityEasy to solder by hand. Don't use a really fine tip, as the two pins need a fair amount of heat.
Thermal Resistancen/a
Land Area5.59mm*3.94mm=22.0mm2
Height2.44mm
3D Models

Link

Common UsesDiodes

Comments

Common package for diodes, and is the in the same family as SMA and SMC. The common name, SMB, is not to be confused with SMD (surface-mount device, the common name for any surface-mount component).

3D Renders

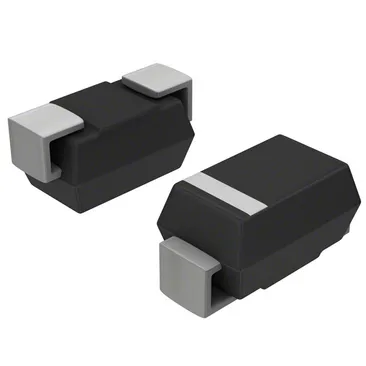

A 3D render of the SMB (DO-214AA) component package.

A 3D render of the SMB (DO-214AA) component package.

Images

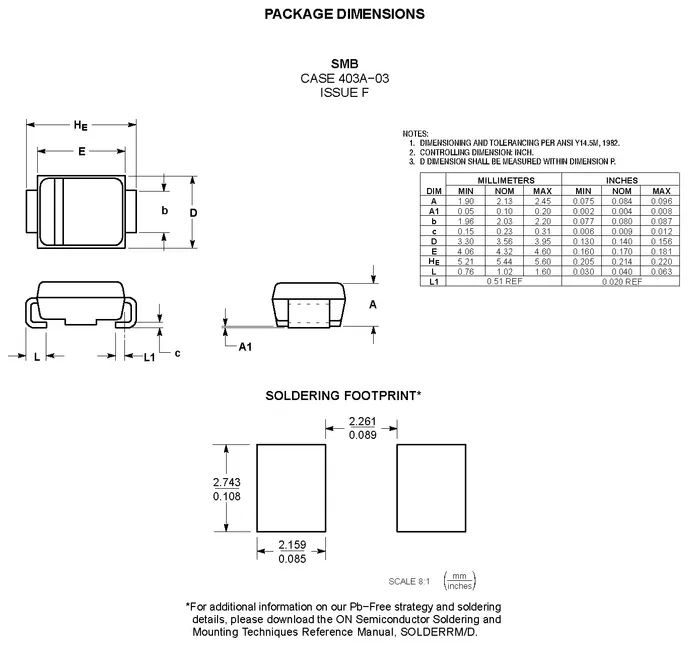

The dimensions and recommended land pattern for the DO-214AA (SMB) diode component package.

The dimensions and recommended land pattern for the DO-214AA (SMB) diode component package.

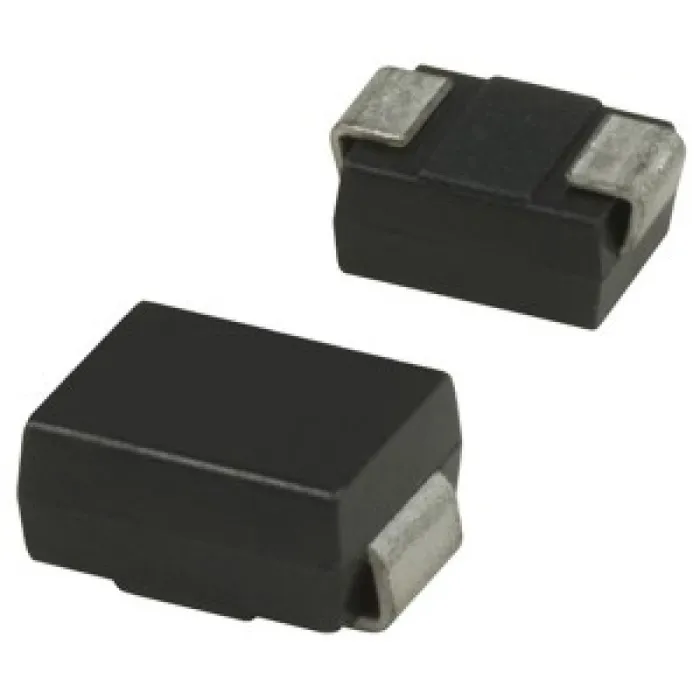

A front and back photo of the DO-214AA (SMB) diode component package.
