Ultra-wide Band (UWB)

Authors:
Geoffrey Hunter
Geoffrey Hunter
Published On:
Sep 15, 2025
Last Updated:
Sep 15, 2025

Ultra-wide band (UWB) is a communication protocol based of the IEEE 802.15.4a and IEEE 802.15.4z standards.1 It allows precise time-of-flight measurement of radio signals which can provide 10 cm accuracy distance and location measurements between nodes. It is more accurate than GPS and can work indoors, but requires references (“anchor”) nodes to be useful. It’s name stems from the fact it uses a wide bandwidth (>500 MHz) when communicating. This allows for transmitting a large amount of signal energy without interfering with existing conventional protocols which are narrowband (e.g. WiFi, Bluetooth, etc.). UWB does not modulate the amplitude, phase and frequency of a carrier signal like a typical RF protocol. Instead, it uses simple time modulation or pulse-position modulation (PPM).2

DecaWave DW1000A IC

The DecaWave DW1000A IC (now owned by Qorvo) was the first single chip UWB transceiver.3 It was announced in 2013.2

A photo of the DecaWave DW1000A IC.[^decawave-dw1000a-ic-photo]

DecaWave, an Irish fabless semiconductor company, was acquired by Qorvo in 2020.4

AI-Thinker NodeMCU-BU01 UWB Development Board

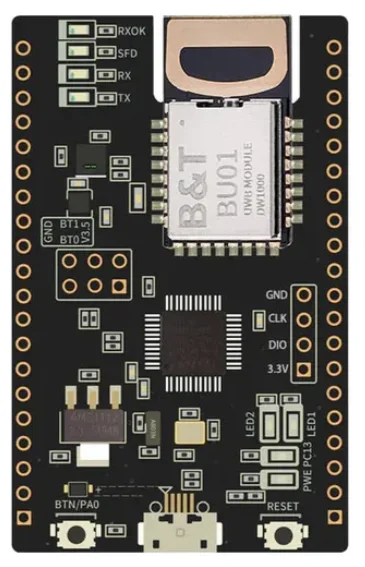

The AI-Thinker NodeMCU-BU01 UWB development board shown in This is a placeholder for the reference: fig-ai-thinker-node-mcu-bu01-uwb-dev-board-photo is a popular board for UWB development. It contains a BU01 UWB module and a STM32F103C8T6 microcontroller.5

A photo of the AI-Thinker NodeMCU-BU01 UWB development board.5
