Multi-Drop Bus Communication Protocol

Authors:
Geoffrey Hunter
Geoffrey Hunter
Published On:
Nov 20, 2024
Last Updated:
Nov 20, 2024

Multi-Drop Bus (MDB) is a communication protocol used with the vending machine industry. The bus is used for communication between the various subsystems inside a vending machine, including the main controller, currency detector, and other peripherals1.

Payment devices such as the Nayax Onyx can use MDB to communicate with other parts of a vending machine.

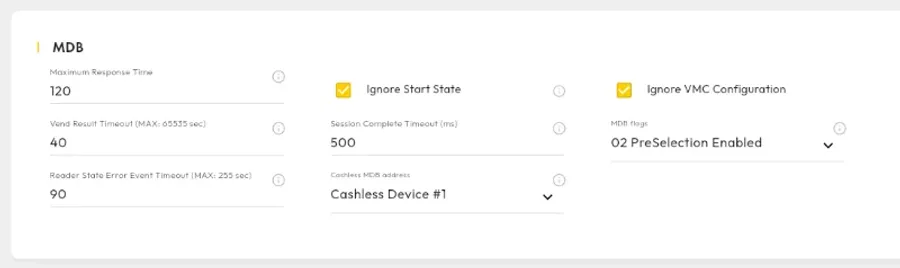

The MDB settings available on the Nayax Onyx payment device.

Footnotes

  1. Wikipedia (2022, Jun 20). Multi-Drop Bus / Internal Communication Protocol. Retrieved 2024-11-20, from https://en.wikipedia.org/wiki/Multi-Drop_Bus_/_Internal_Communication_Protocol. ↩
