Delay Circuits

Delay circuits are used to delay the progression of a analogue or digital signal through a circuit. You may want to delay a signal to:

• Allow time for a circuit to settle.
• Debounce a switch.
• Create an audio delay/reverb effect.
• Create an oscillator at a specific frequency (e.g. feeding back the output of three inverters connected in series creates an oscillator).
• Delay user interactions.

This page covers a range of techniques for creating delays, including RC/Schmitt trigger circuits, 555 timers, long pieces of wire, delay line ICs, bucket brigade ICs, and microcontrollers.

RC with Schmitt Trigger

A RC circuit combined with Schmitt triggers can be used to create a digital delay. The RC circuit converts a sharp input transition into a slower transition based on the RC circuit time constant. The Schmitt trigger then “sharpens” up the edges again by switching it’s output quickly when the input reaches certain thresholds. This is a placeholder for the reference: fig-schmitt-trigger-delay-single-rc shows the circuit. This uses two inverting Schmitt triggers — the purpose of the second one (U2) is to re-invert the signal so it is the same polarity as the input.

A delay circuit made from a RC circuit and a Schmitt trigger.

This is a placeholder for the reference: fig-schmitt-trigger-single-rc-waveforms shows the waveforms for the single RC delay circuit. Notice how the delays are not symmetrical. The delay for the low-to-high transition is longer than the high-to-low transition. This can be fixed by adding another RC circuit between the two Schmitt triggers (more on this below).

Waveforms for the single RC delay circuit in This is a placeholder for the reference: fig-schmitt-trigger-delay-single-rc.

One downside to this circuit is that there is a “cooldown” period between transitions. This is the time it takes to the RC circuit to settle so that it can work correctly for the next transition. As such, the cooldown is normally about $5\tau$ (5 time constants) where $\tau = RC$. If transitions occur within this cooldown period, the circuit will not work as expected, sometimes transitioning to quickly (the RC circuit has not settled yet, and already has a head-start in going back in the other direction), or not transitioning at all (e.g. a transition to high and then back to low before the output has switched would result in no output change).

Design Procedure

You generally want to pick a capacitance in the range of $100\,pF$ to $1\,\mu F$. This is because if the capacitance is lower than $100\,pF$, parasitic capacitance (typically in the $1-20pF$ range) will be have a significant effect on the delay. Capacitances higher than $1\,\mu F$ start to get more expensive, are physically larger, and start to use dielectrics (e.g. X7R or X5R) which cause the capacitance to significantly vary with voltage.

The 74HC14 “Hex Inverter with Schmitt Trigger Inputs” family of ICs are commonly used as the Schmitt trigger. You would then pick a resistance to give the desired delay. To do this, we need to use the RC charging equation (see the RC Charging Circuits page for more info).

$$\begin{align} V = V_{CC} (1 - e^{ \large{\left[ \frac{-t}{RC} \right]} }) \end{align}$$

In this situation, $V$ would be the threshold voltage ($V_{T+}$ or $V_{T-}$ depending on the transition direction), $V_{CC}$ is the supply voltage, $t$ is the desired delay time, and $C$ is the capacitance.

We need to rearrange this equation to solve for $R$:

$$\begin{align} V &= V_{CC} (1 - e^{ \large{\left[ \frac{-t}{RC} \right]} }) \nonumber \\ \frac{V}{V_{CC}} &= 1 - e^{ \large{\left[ \frac{-t}{RC} \right]} } \nonumber \\ e^{ \large{\left[ \frac{-t}{RC} \right]} } &= 1 - \frac{V}{V_{CC}} \nonumber \\ \frac{-t}{RC} &= \ln(1 - \frac{V}{V_{CC}}) \nonumber \\ RC &= \frac{-t}{\ln(1 - \frac{V}{V_{CC}})} \nonumber \\ R &= \frac{-t}{\ln(1 - \frac{V}{V_{CC}})C} \htmlId{eqn-schmitt-trigger-delay-resistance}{} \\ \end{align}$$

Example: Single RC/Schmitt Trigger Delay

Design a RC/Schmitt trigger circuit to create a 100us low-to-high delay from a +3.3V supply.

We’ll use the Texas Instruments SN74HC14 “SNx4HC14 Hex Inverters with Schmitt-Trigger Inputs” IC. This is a placeholder for the reference: tbl-schmitt-trigger-thresholds shows the trigger thresholds for the SN74HC14 taken from the datasheet¹.

Schmitt trigger thresholds for the Texas Instruments SN74HC14¹.

Parameter	VCC	MIN	TYP	MAX
$V_{T+}$	2V	0.7V	1.2V	1.5V
	4.5V	1.55V	2.5V	3.13V
	6V	2.1V	3.3V	4.2V
$V_{T-}$	2V	0.3V	0.6V	1V
	4.5V	0.9V	1.6V	2.45V
	6V	1.2V	2V	3.2V

Unfortunately, $+3.3\,V$ is not one of the supply voltages the thresholds are given for. We’ll do a bit of simple linear interpolation to estimate the thresholds. We’ll use typical values to keep things simple — however bear in mind that the delay time could vary somewhat due to the tolerances of the thresholds!

$$\begin{align} V_{T+(3.3V)} &= 1.2\,V + \left(3.3\,V - 2\,V\right) \times \frac{2.5\,V - 1.2\,V}{4.5\,V - 2\,V} \nonumber \\ &= 1.2\,V + 1.3 \times \frac{1.3\,V}{2.5\,V} \nonumber \\ &= 1.2\,V + 0.676\,V \nonumber \\ &= 1.88\,V \end{align}$$$$\begin{align} V_{T-(3.3V)} &= 0.6\,V + \left(3.3\,V - 2\,V\right) \times \frac{1.6\,V - 0.6\,V}{4.5\,V - 2\,V} \nonumber \\ &= 0.6\,V + 1.3 \times \frac{1\,V}{2.5\,V} \nonumber \\ &= 0.6\,V + 0.52\,V \nonumber \\ &= 1.12\,V \end{align}$$

We’ll now pick a capacitance. Let’s try $C = 1\,\text{nF}$. We can now calculate the resistance so that the RC circuit charges up to $1.88\,V$ in $100\,\mu s$. Using This is a placeholder for the reference: eqn-schmitt-trigger-delay-resistance we have:

$$\begin{align} R &= \frac{-t}{\ln(1 - \frac{V}{V_{CC}})C} \nonumber \\ &= \frac{-100\,\mu s}{\ln(1 - \frac{1.88\,V}{3.3\,V}) \times 1\,\text{nF}} \nonumber \\ &= 119\,k\Omega \end{align}$$

Solved! This is a placeholder for the reference: fig-schmitt-trigger-delay-single-rc-example shows the completed circuit. SN74HC14 contains 6 individual Schmitt triggers, so we use 2 of them from the same IC, hence U1A and U1B.

The completed RC with Schmitt trigger circuit, giving a positive-going edge delay of $100\,\mu s$.

Symmetrical Delays

The circuit shown in This is a placeholder for the reference: fig-schmitt-trigger-delay-single-rc does not have symmetrical delays. The delay for the low-to-high transition is longer than the high-to-low transition. This will occur whenever the $V_{T+}$ and $V_{T-}$ thresholds for the Schmitt trigger are not symmetrical around the midpoint of the supply voltage. This perfect condition is unlikely to occur in practise. This is a placeholder for the reference: tbl-schmitt-trigger-symmetry summarises the typical thresholds for the SN74HC14 and calculates the center point of these thresholds. As you can see, they are not equal to 0.5 (but pretty close, being in the range of 0.44 to 0.46).

The threshold mid-points (as a ratio of VCC) for the Texas Instruments SN74HC14¹.

VCC	$V_{T+}$ (typ.)	Ratio of VCC	$V_{T-}$ (typ.)	Ratio of VCC	Thresholds Mid-point (ratio of VCC)
2V	1.2V	0.6	0.6V	0.3	0.45
4.5V	2.5V	0.56	1.6V	0.36	0.46
6V	3.3V	0.55	2V	0.33	0.44

By adding another RC circuit between the two Schmitt triggers as shown in This is a placeholder for the reference: fig-schmitt-trigger-delay-symmetrical, the delay time for the positive and negative going transitions can be made to be the same (well…more equal, there is still a rather large manufacturing tolerance for $V_{T+}$ and $V_{T-}$).

A RC/Schmitt trigger delay circuit with symmetrical positive and negative going delays.

When doing this you will want to split your delay time evenly between the two RC circuits (i.e. identical RC circuits). You can use the same process as in the example above with a single RC element, but set $t$ to half the desired delay time.

Example: Symmetrical RC/Schmitt Trigger Delay

Use the same requirements as in the previous example (100us delay), but make the delay time equal for both positive and negative going transitions.

$t$ for each RC circuit is now $50\,\mu s$ (half the total delay time).

$$\begin{align} R &= \frac{-t}{\ln(1 - \frac{V}{V_{CC}})C} \nonumber \\ &= \frac{-50\,\mu s}{\ln(1 - \frac{1.88\,V}{3.3\,V}) \times 1\,\text{nF}} \nonumber \\ &= 59.3\,k\Omega \end{align}$$

This is a placeholder for the reference: fig-schmitt-trigger-delay-symmetrical-example shows the completed circuit.

The completed symmetrical delay RC/Schmitt trigger circuit, giving a delay of $100\,\mu s$.

555 Timer

555 timers can be configured to create a variable digital delay. This is a placeholder for the reference: fig-555-timer-delay shows a circuit using a 555 timer configured in monostable mode. It will output a fixed width pulse after a high-to-low transition on the input.

A 555 timer configured to output a fixed width pulse after a high-to-low transition on the input.

The width of the output pulse is determined by the values of $R_1$ and $C_1$²:

$$\begin{align} t_{pulse} &= 1.1 R_1 C_1 \\ \end{align}$$

Note one of the key behaviours with the circuit in This is a placeholder for the reference: fig-555-timer-delay is that when the input transitions from high-to-low, the output only stays high for a fixed amount of time before returning to it’s original state. You could view it more of a pulse generator than a delay circuit.

I’m not sure if you can easily use 555 timers to delay input transitions and have the output stay in the same state as the input indefinitely (until the next input transition) as you can with the RC/Schmitt trigger circuit. My guess is yes, but I haven’t put the time/energy into working out how. You would also have to consider what happens if the input changes before the output has “caught up”.

A Long Piece of Wire

It sounds almost too simple, but a suitably sized length of wire (or fibre-optic cable) can be used to create short delays. The propagation of an electrical signal in copper wire is fast (around 0.7c, where c is the speed of light in a vacuum), but not instant! Light travels about 30cm in one nanosecond, so you can get delays in the 0.1 to 100ns+ range with right length of cable.

The propagation of an electrical signal down a wire.

A great thing about this technique is that it works for both digital and analogue and is bi-directional. This is a common technique in oscilloscopes. The exact speed of the signal depends on many factors including the dielectric surrounding the copper wire. Most sources give a speed of around 0.7c for a signal in a typical copper wire³.

Tip

The fast propagation of the electrical signal is not to be confused with the speed of the electrons (drift velocity) which is much slower. For a DC current of 1A in 2mm diameter copper wire, the drift velocity is only about 8 cm per hour⁴!

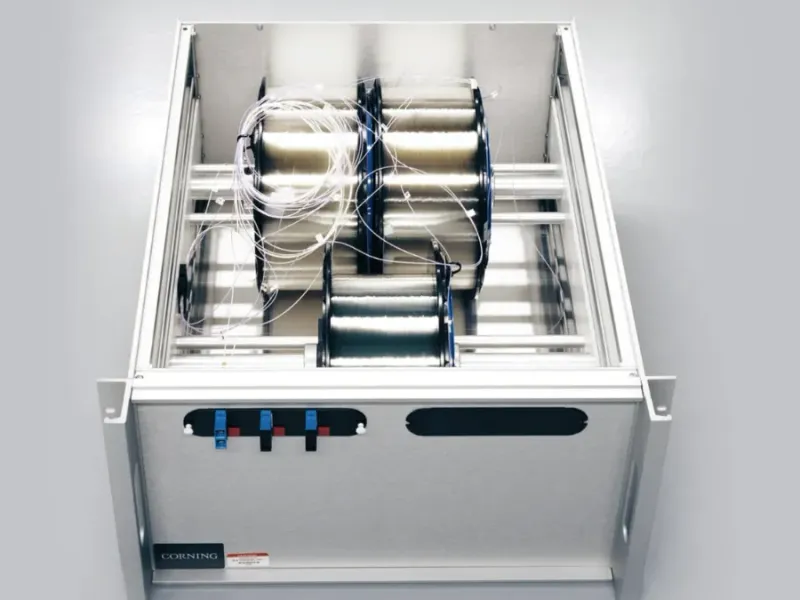

An interesting application of this technique was used by the IEX stock exchange. High-frequency traders typically leverage microsecond-scale delays inherent in stock market information to “game” the market. This style of trading (latency arbitrage) is generally viewed negatively and not conducive to a healthy market. To combat this, IEX created a “Speed Bump” (shown in This is a placeholder for the reference: fig-iex-speed-bump-fibre-optic-cable) which contained 61km of fibre optic cable, that they routed all traffic to their stock market through⁵. This spool of cable introduced a 350us delay to all market data, allowing multiple markets time to adjust to new data, and preventing latency arbitrage from being profitable⁶. The neat physical delay trick also side-stepped many of the legal issues around reliability and control had they implemented the delay in software.

The “Speed Bump” at the IEX stock exchange⁵.

Chains of Inverter Gates

A chain of inverter gates can be used to create a digital delay. You utilize the propagation delay (the time it takes for the input signal to appear at the output) of the inverter gates to create the delay. Most inverter gates have propagation delays from 0.5-10ns, so this approach is useful for short delays. You can do this yourself if delay does not need to be very precise ($t_{pd}$ only gives an approximation of the total delay) or long (chaining together hundreds of discrete gates starts to become impractical). If you want more precision or length, consider using a dedicated delay line IC (see below).

A series of inverter gates creating a digital delay.

Example: Series Inverter Based Delay

For example, if I choose to use the Diodes Incorporated 74HC04 “Hex Inverter” IC, each inverter gate has a propagation delay $t_{pd}$ of $9\,ns$ (typical) at $V_{CC} = 4.5\,V$⁷. Chaining 4 of these together would give a delay of about $36\,ns$.

Delay Lines

Delay lines are digital ICs which can delay a digital signal by a certain amount of time. Many of these delay line ICs work internally by using a long chain of inverter gates (very similar to how you would wire them discretely), but also with advanced circuitry to compensate for voltage and temperature variations and keep the delays accurate. Most also provide “taps” which are pins that connect to various points along the inverter gates. Dallas Semiconductor pioneered this technology with the production of the DS1000, DS1100, DS1135, DS1110, DS1077, DS1085 and DS1086 ICs⁸.

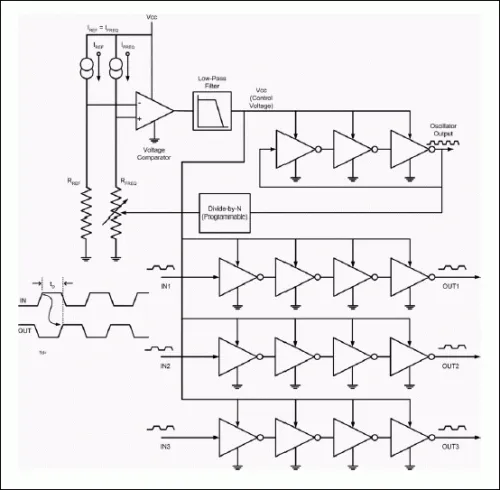

This is a placeholder for the reference: fig-ds1135-internal-circuitry shows the internal circuitry of the Analog Devices DS1135 “3-in-1 Delay Line” IC⁸.

The internal circuitry of the Analog Devices DS1135 “3-in-1 Delay Line” IC⁸.

One example is the Analog Devices (formerly Dallas Semiconductor/Maxim) DS1110L “3V 10-Tap Silicon Delay Line” IC⁹.

Bucket Brigade Devices

Bucket brigade devices (BBDs) are analogue delay ICs which work by “shuffling” sampled inputs voltages along a chain of capacitors until it reaches the output. They were commonly used in early audio processing systems, and still find use today in specialty items such as guitar effect pedals¹⁰.

This is a placeholder for the reference: fig-bucket-brigade-delay-basic-internal-schematic shows the basic internal design of a basic bucket brigade IC.

The basic internal design of a bucket brigade IC¹¹.

BBDs usually have quite a number of buckets in them! Common sizes include 256, 512, 1024, 2048, and 4096 buckets per chip. Because they were designed for audio, delays ranged from about 5 ms to 200 ms¹². Delays longer than this can be achieved by chaining multiple BBDs together.

Microcontroller

Of course, a microcontroller can be used to delay both digital and analogue signals. You would need basic GPIO to interface with digital signals, and a ADC and DAC for analogue signals. Combined with some memory (typically RAM) setup as a FIFO buffer, you can create a delay of your choosing. You will want to choose a sample rate that is at least 2 times higher than the highest frequency you want to delay (i.e. obey the Nyquist-Shannon sampling theorem). For analogue signals, the bit depth of the ADC and DAC will determine the resolution of the signal, and combined with the sample rate and desired delay time, will determine how much memory you will need.

This is a placeholder for the reference: fig-mcu-delay shows a pseudo-circuit (high-level diagram) illustrating how to create an analogue delay using a microcontroller.

A pseudo-circuit illustrating how to create an analogue delay using a microcontroller.

Using a microcontroller could be the best approach if you:

• Already have microcontroller.
• Need to delay complex analogue signals.
• Need the delay to be highly configurable and/or updatable in the field (i.e. via a bootloader).
• The signal already passes through the microcontroller.

Using a microcontroller is probably not the best option if:

• All you need is a simple digital delay.
• It needs to be really quick (1-20ns range).
• You don’t already have a microcontroller.
• The delay needs to be very reliable (e.g. not affected by firmware bugs or higher priority interrupts).
