Linear Feedback Shift Registers (LFSRs)

Caution

This page is in notes format, and may not be of the same quality as other pages on this site.

Linear feedback shift registers (LFSRs) are a type of shift register whose input bit is a linear function of its previous state. They are used to generate things such as pseudo-random number generators (PRNGs) and pseudo-noise.

The input bit is determined by the state of the bits in the shift register. Because this is deterministic, as because the shift register can only contain a finite number of states, the sequence of bits outputted by the LFSR will eventually start to repeat. This sequence is known as the period of the LFSR. It is generally desirable to chose the feedback function (the bits which are tapped/XORed together to give the input bit) such that the output seems random and have a long period.

The maximum period of an LFSR can never be greater than the number of states possible in shift register, minus 1 because the state of all $0$ bits is not allowed. This is $2^n - 1$ where $n$ is the number of bits in the shift register. For example, an LFSR with 8 bits can have a period of at most $2^8 - 1 = 255$ before it starts to repeat. The state of all $0$ bits is not allowed because in this case the output would never change.

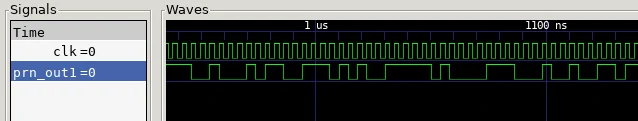

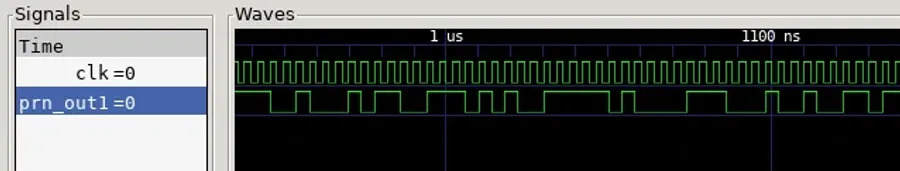

A screenshot of a simulation of a LFSR written in Verilog. The top trace is the clock, and the bottom trace is the output of the LFSR (which is used as a pseudo-random number generator).
