ROCKETRY

Rocket Motors

Article by:
Date Published:
Last Modified:

Rocket motors are the part of the rocket which provides the thrust.

Anchors

Anchors help prevent the nozzle and end-plug from coming out during the burn.

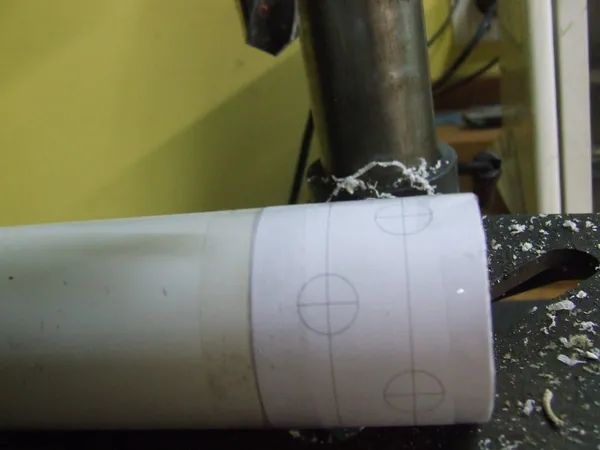

I made a drill hole template up on QuickCAD for the nozzle and end-plug anchors.
I made a drill hole template up on QuickCAD for the nozzle and end-plug anchors.

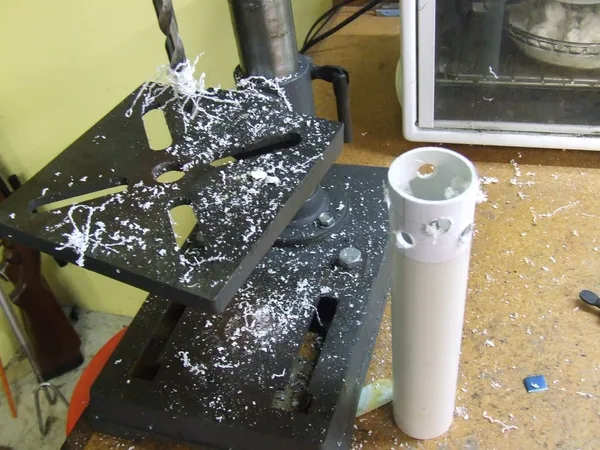

Drilling the anchors to stop the nozzle and end plug from coming out.
Drilling the anchors to stop the nozzle and end plug from coming out.

Thermal Sleeves

Thermal sleeves help prevent the rocket motor casing from rupturing during the burn due to heat. This is especially true for PVC rocket motors.

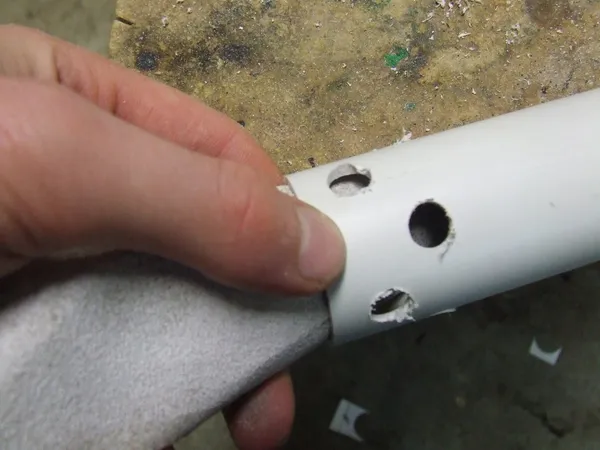

Inserting a thermal sleeve into the PVC rocket motor. The sleeve was made by gluing Aluminium foil onto a piece of cardboard, and then wrapping it on itself a couple of times.
Inserting a thermal sleeve into the PVC rocket motor. The sleeve was made by gluing Aluminium foil onto a piece of cardboard, and then wrapping it on itself a couple of times.

Finished Motor

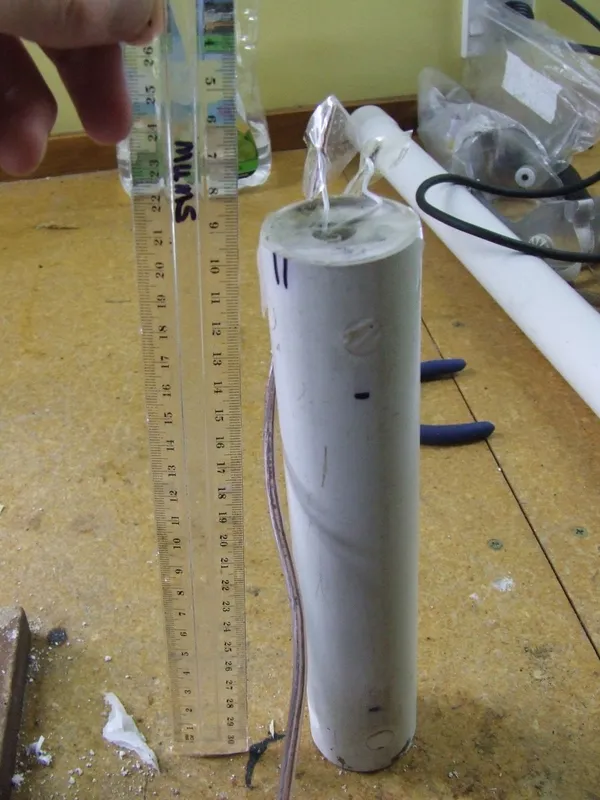

A KNDX PVC rocket motor.
A KNDX PVC rocket motor.

You can view the motors I made for either rockets, experiments, or even the odd skatebaord on the Rocket Projects page.
